70 - BRAKESELECTRONIC CONTROL UNIT ABS
background image

70

BRAKES

22

REPAIR

MODULATOR UNIT

Service repair no - 70.65.45

WARNING: New modulator units are
supplied in a shock absorbing pack
marked with a use by date. The new

modulator will contain hydraulic brake fluid within
the valve block and all ports plugged.

Modulator units must be handled with care the
following must be avoided:- any impact, use of
compressed air on any of the hydraulic ports,
removing plugs to connection ports before fitting
unit.

Remove

1. Refer to the illustration of brake components

ABS. For details of modulator unit and hydraulic
pipe connections to it.

See Brake

Components ABS

2. Refer to general brake service practice.

See

General Brake Service Practice

3. Check new modulator unit is packaged in

accordance with the WARNING above.

4. Disconnect battery negative lead.
5. Remove the two electrical plugs.
6. Identify 8 pipe to modulator connections for

correct reassembly.

7. Disconnect 8 pipe unions.
8. Remove nuts securing modulator to mounting

bracket.

9. Remove modulator unit.

10. Remove mounting bushes and cup.

Refit

11. Fit mounting bushes and cup to new modulator.
12. Fit modulator unit to mounting bracket.
13. Fit 8 pipes to modulator connections. Pipes

must be connected to correct port. Tighten to
15Nm.

14. Bleed the complete hydraulic system.

See

Brake System Bleed

15. Check system function using the ’Testbook’

diagnostics

16. Test operation of brakes.

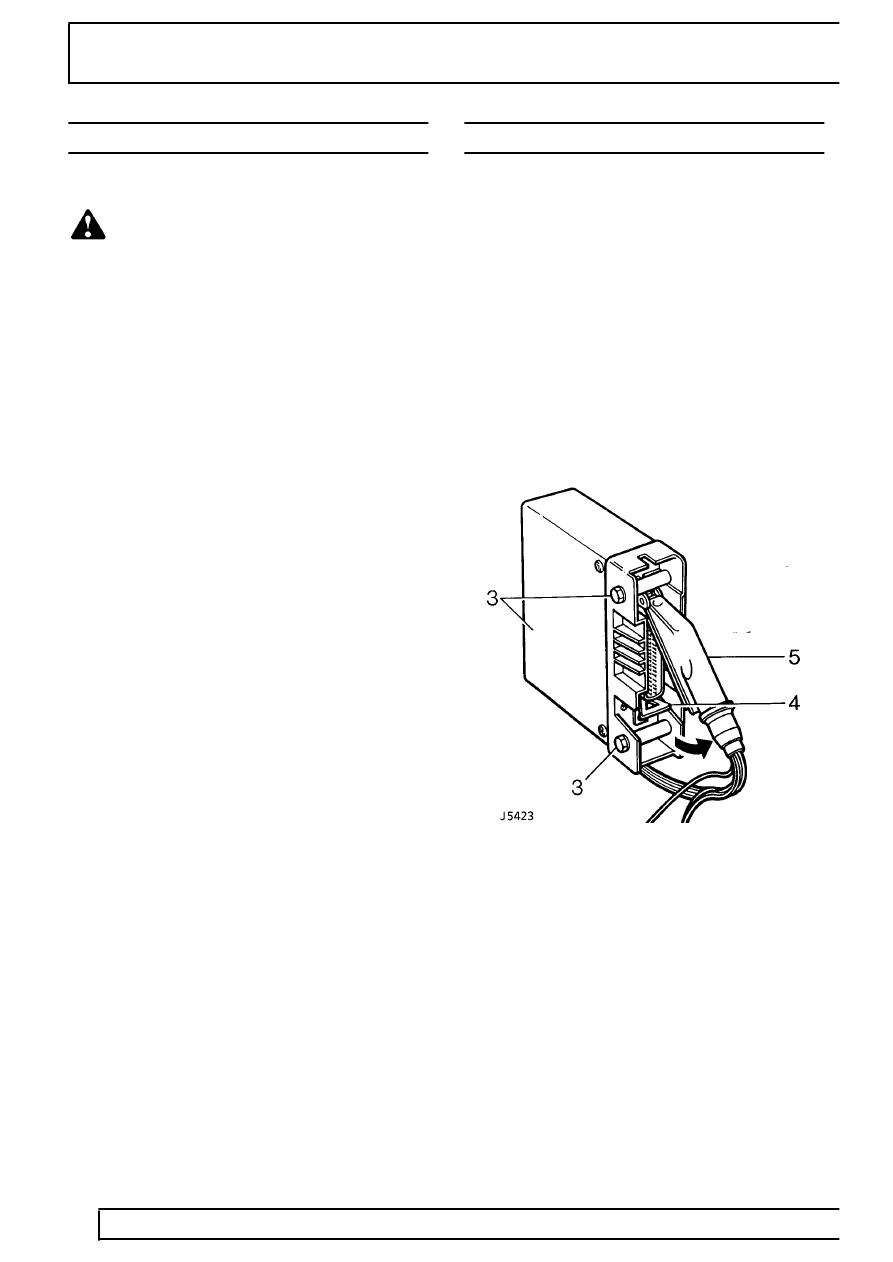

ELECTRONIC CONTROL UNIT ABS

Service repair no - 70.65.01

Remove

For location of the ECU.

See Description and

operation, ABS Components

1. Disconnect battery negative lead.
2. Remove retaining bolt and lower alarm system

ECU and relay mounting bracket into passenger
footwell.

3. Remove two screws and detach ECU complete

with harness plug from mounting bracket.

4. Release ECU plug retaining clip.
5. Move plug in direction of arrow and release

hooked end of plug from retaining post.

Refit

6. Reconnect ECU harness plug ensuring that it is

firmly located and retaining clip secures plug.

7. Reverse removal procedure.
