BRAKE PIPE LAYOUT NON ABS (70 - BRAKES)
- Make
- Land Rover
- Model
- Discovery 300Tdi Discovery
- Section
- DESCRIPTION AND OPERATION › BRAKE PIPE LAYOUT NON ABS
70 - BRAKESBRAKE PIPE LAYOUT NON ABS
70
BRAKES
6
DESCRIPTION AND OPERATION

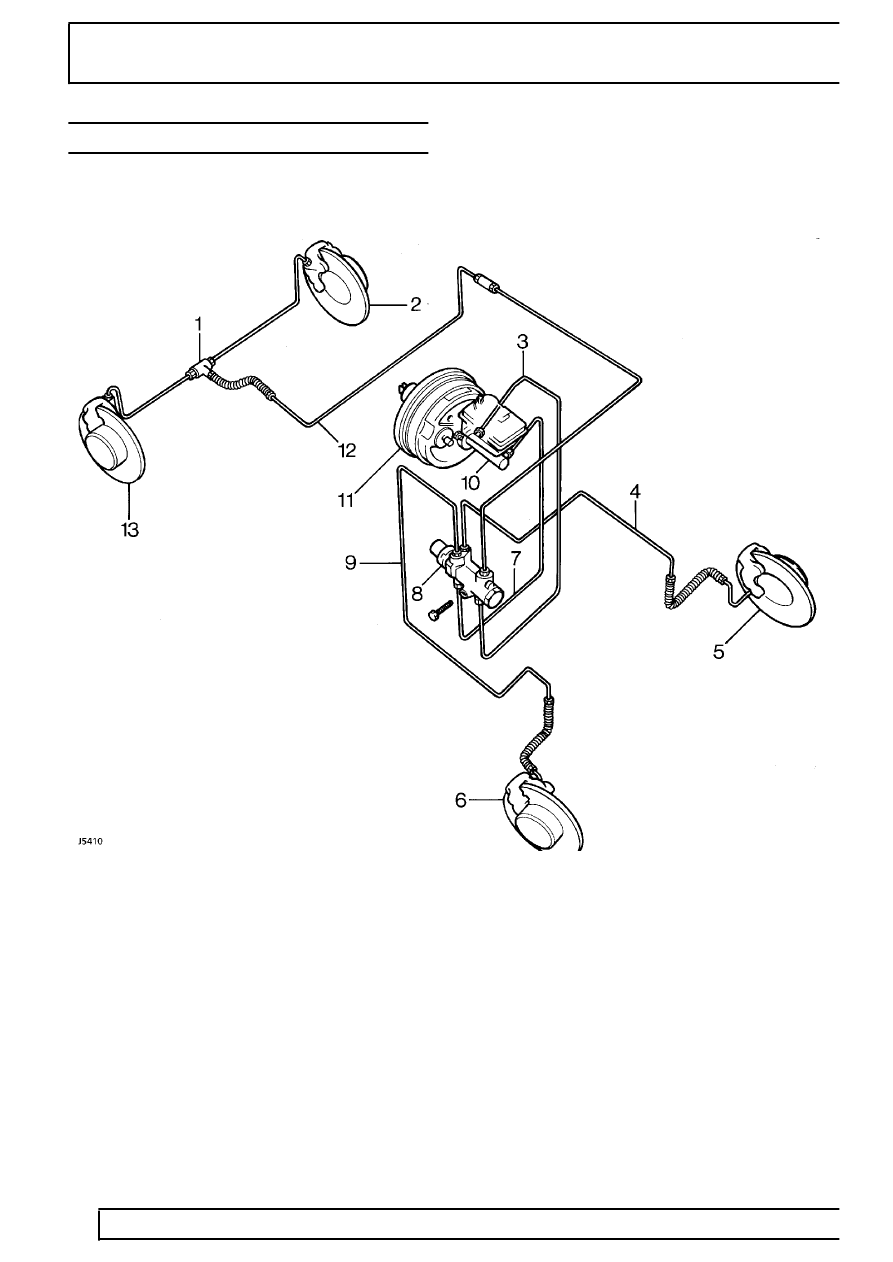

BRAKE PIPE LAYOUT NON ABS
Left hand drive shown. On right hand drive vehicles the master cylinder and servo unit only move
position.
KEY
1. T-Connector
2. Rear left brake
3. Master cylinder to pressure reducing valve lower
4. Front left brake to pressure reducing valve upper
5. Front left brake
6. Front right brake
7. Master cylinder to pressure reducing valve lower
8. Pressure reducing valve
9. Front right brake to pressure reducing valve
upper
10. Master cylinder
11. Servo unit
12. Pressure reducing valve upper to both rear
brakes
13. Rear right brake
