70 - BRAKES (ABS COMPONENTS): DESCRIPTION AND OPERATION
- Make
- Land Rover
- Model
- Discovery 300Tdi Discovery
- Section
- DESCRIPTION AND OPERATION › ABS COMPONENTS
70 - BRAKESABS COMPONENTS
70
BRAKES
2
DESCRIPTION AND OPERATION
ABS COMPONENTS
Location

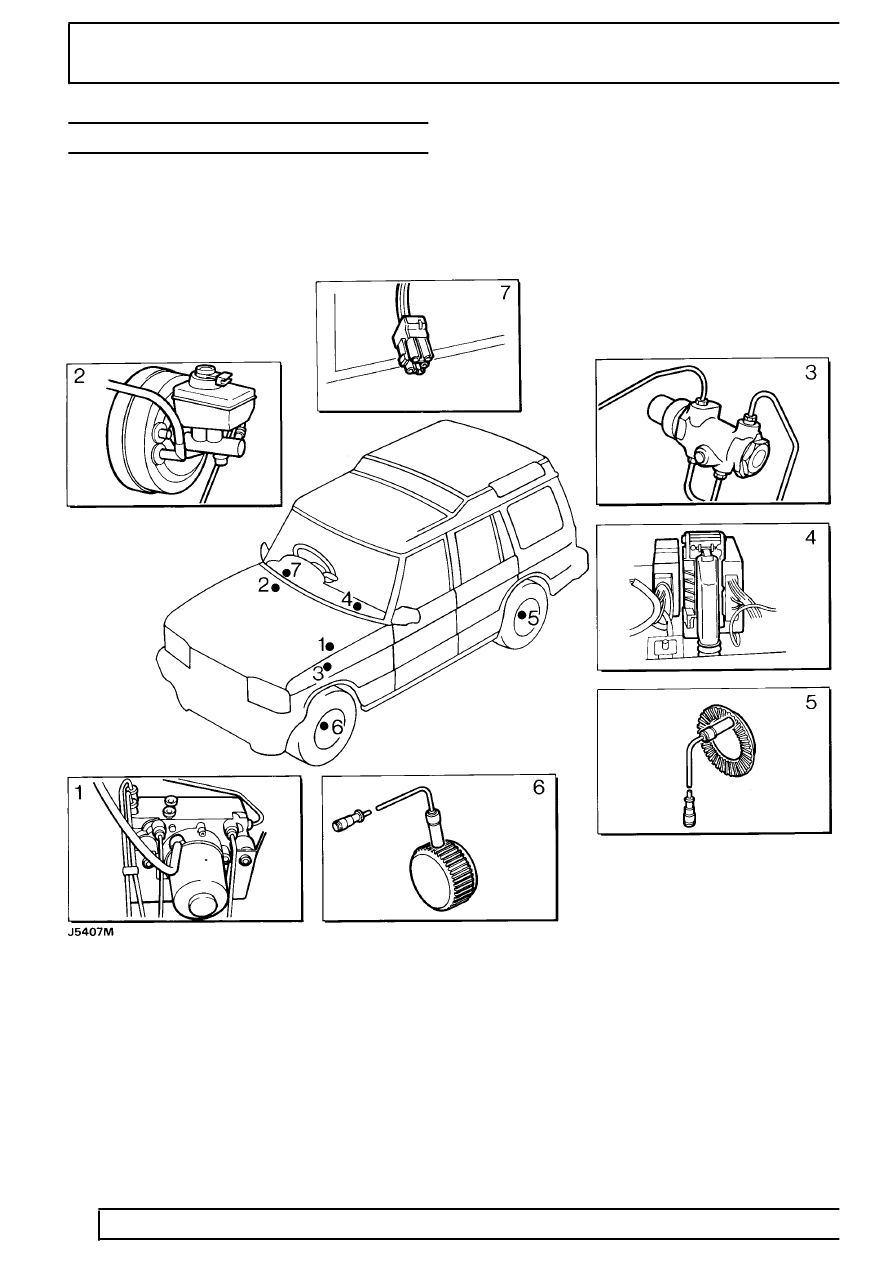

Key to diagram
1. ABS Modulator unit
2. Servo/Master cylinder
3. Pressure reducing valve
4. Electronic control unit
5. Rear sensors/exciter rings
6. Front sensors/exciter rings
7. Diagnostic plug connection
