54 - FRONT AXLE AND FINAL DRIVE: DESCRIPTION AND OPERATION (page 2 of 2)

Make
Land Rover
Model
Discovery 300Tdi Discovery
54 - FRONT AXLE AND FINAL DRIVEDESCRIPTION AND OPERATION · page 2 of 2
background image

54

FRONT AXLE AND FINAL DRIVE

2

DESCRIPTION AND OPERATION

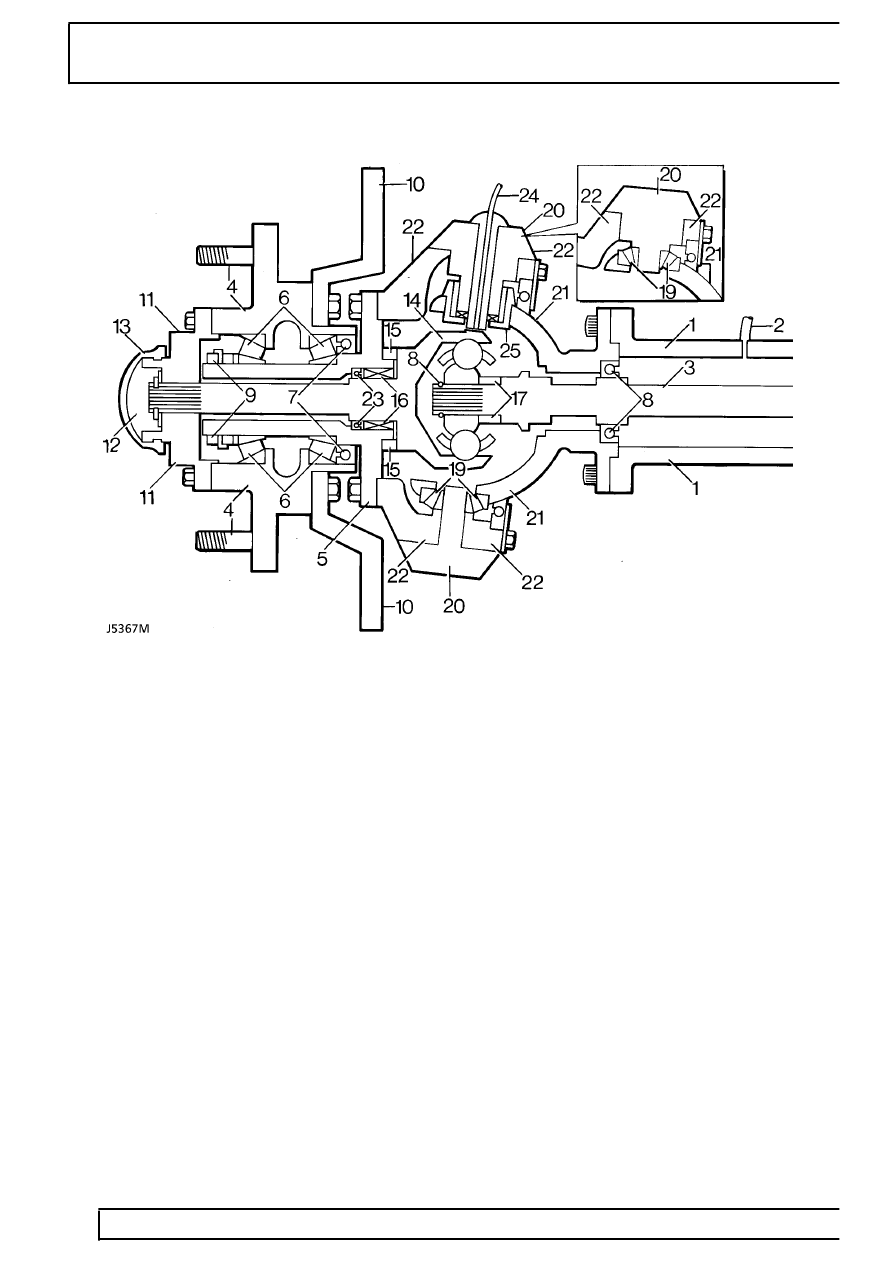

Front axle

1. Axle casing
2. Ventilation pipe
3. Axle shaft
4. Wheel studs and hub
5. Stub axle
6. Wheel bearings (2)
7. Inner and outer hub seals
8. Axle shaft seal
9. Hub lock plate, thrust washer and nuts (2)

10. Brake disc
11. Drive flange
12. Shim washer and circlip
13. Dust cap

14. Constant velocity joint/shaft
15. Thrust collar for CV joint
16. Roller bearing
17. Spacer
18. Circlip
19. Bottom swivel taper bearing
20. Top and bottom swivel pins
21. Spherical housing, seal and retainer
22. Swivel housing
23. Constant velocity shaft seal
24. ABS pickup (electrical connection)
25. ’Rialco’ bush ABS
