TRIP COMPUTER - Wiring diagram
- Make
- Lancia
- Model
- Ypsilon Factory Service Manual
- Year
- 2003–2011
- Section
- Instrument panel › TRIP COMPUTER - Wiring diagram
Wiring diagrams and electrical functionsTRIP COMPUTER - Wiring diagram
TRIP COMPUTER - Wiring diagram

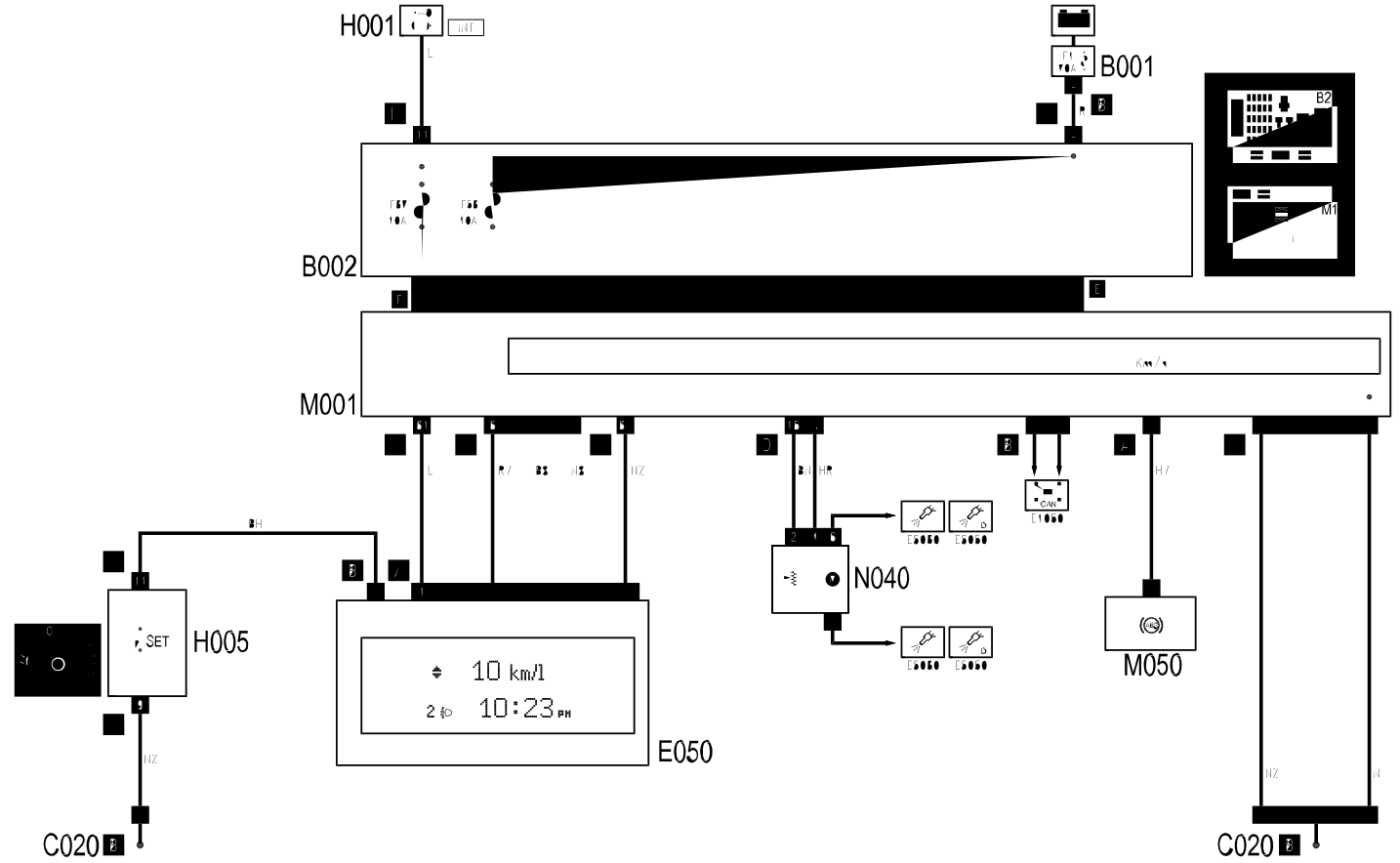

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| C20 | Passenger side dashboard earth | |
| E50 | Instrument panel | 5560B |
| H1 | Ignition switch | 5520A |
| H5 | Steering column switch unit | 5550A |
| M1 | Body computer | 5505A |
| M50 | ABS control unit | 3340A |
| N40 | Fuel pump and sender unit | 1040A |
