CENTRAL LOCKING - Wiring diagram
- Make
- Lancia
- Model
- Ypsilon Factory Service Manual
- Year
- 2003–2011
- Section
- Electrically activated devices › CENTRAL LOCKING - Wiring diagram
Wiring diagrams and electrical functionsCENTRAL LOCKING - Wiring diagram

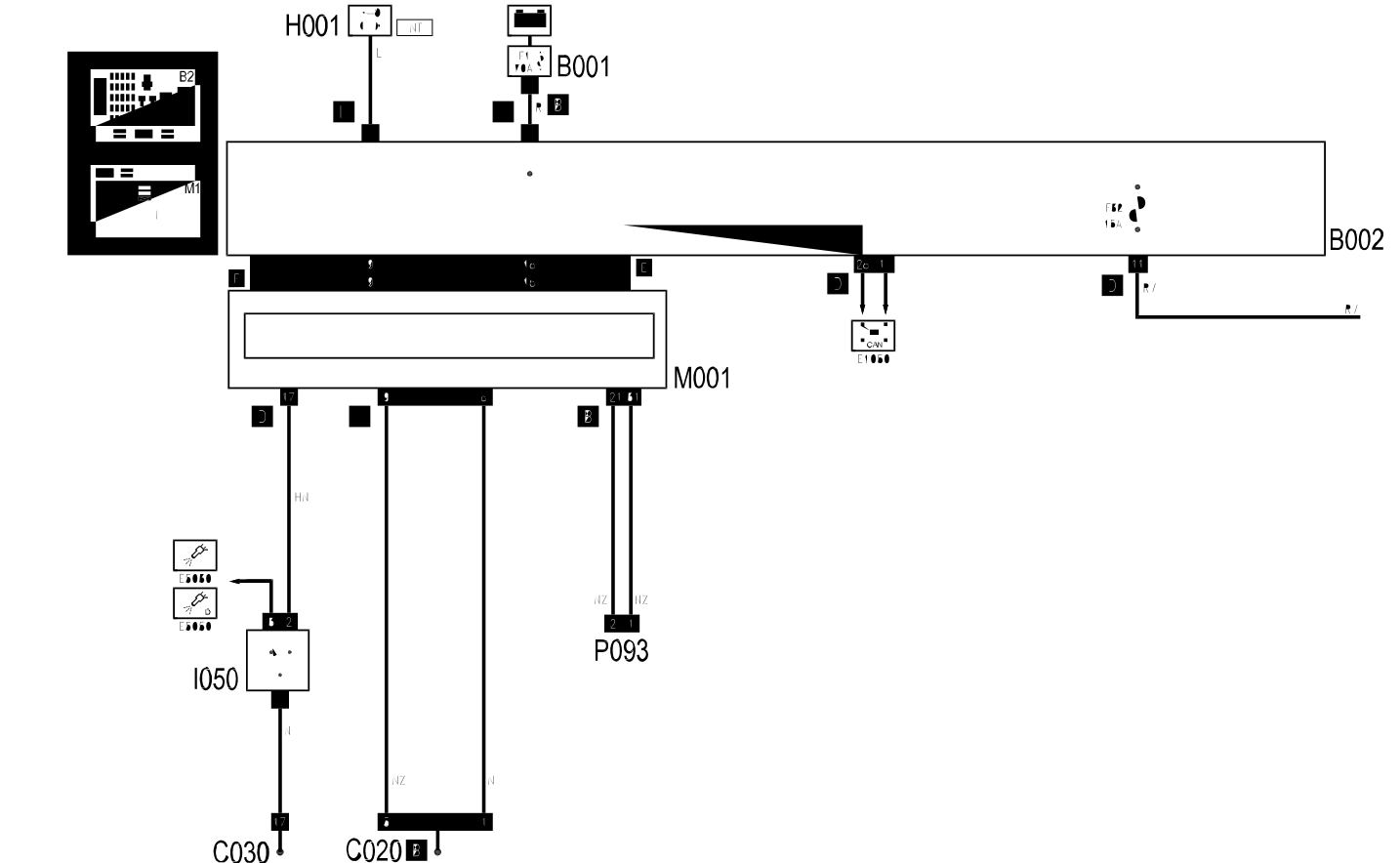

CENTRAL LOCKING - Wiring diagram
Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| C20 | Passenger side dashboard earth | |
| C30 | Left rear earth | |
| C31 | Rear right earth | |
| D30 | Rear coupling for /front door. driver's side | |
| D31 | Front passenger door/ rear coupling. | |
| D97 | Short circuiting coupling | |
| E36 | Driver's front door locking / unlocking LED | 7005E |
| H1 | Ignition switch | 5520A |
| H35 | Switches on tunnel | 7040L |
| H50 | Electric window switch on .front passenger door | 7005M |
| I50 | Inertia switch | 1040A |
| I50 | Inertial switch | 1040A |
| M1 | Body computer | 5505A |
| M66 | Driver's door control unit | 5505A |
| M67 | Passenger door control unit | 5505A |
| N50 | Front driver's door lock geared motor. | 7005N |
| N51 | Front passenger door lock geared motor | 7005N |
| N51 | Passenger side front door lock geared motor | 7005N |
| P93 | Aerial for alarm and central locking receiver |

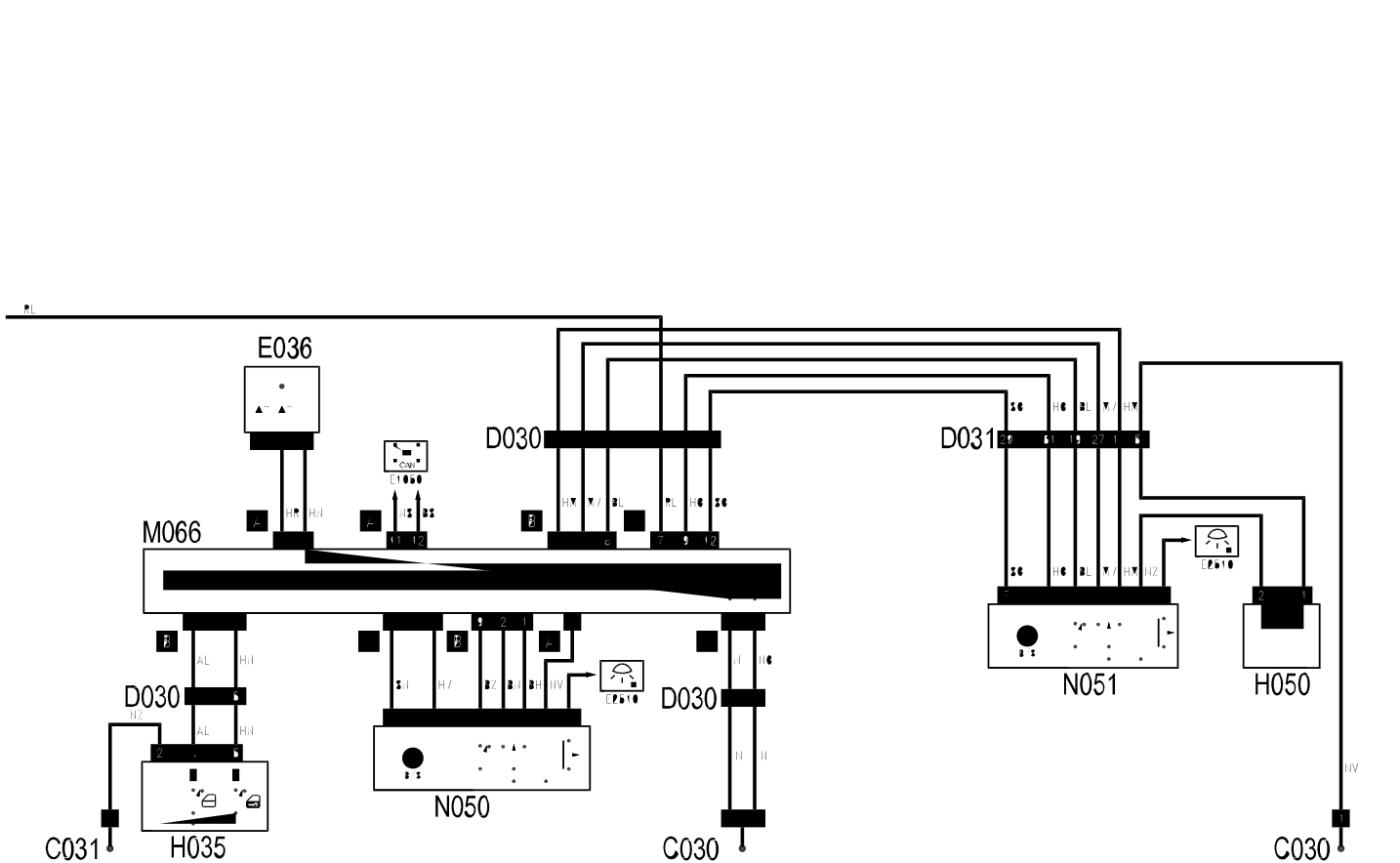

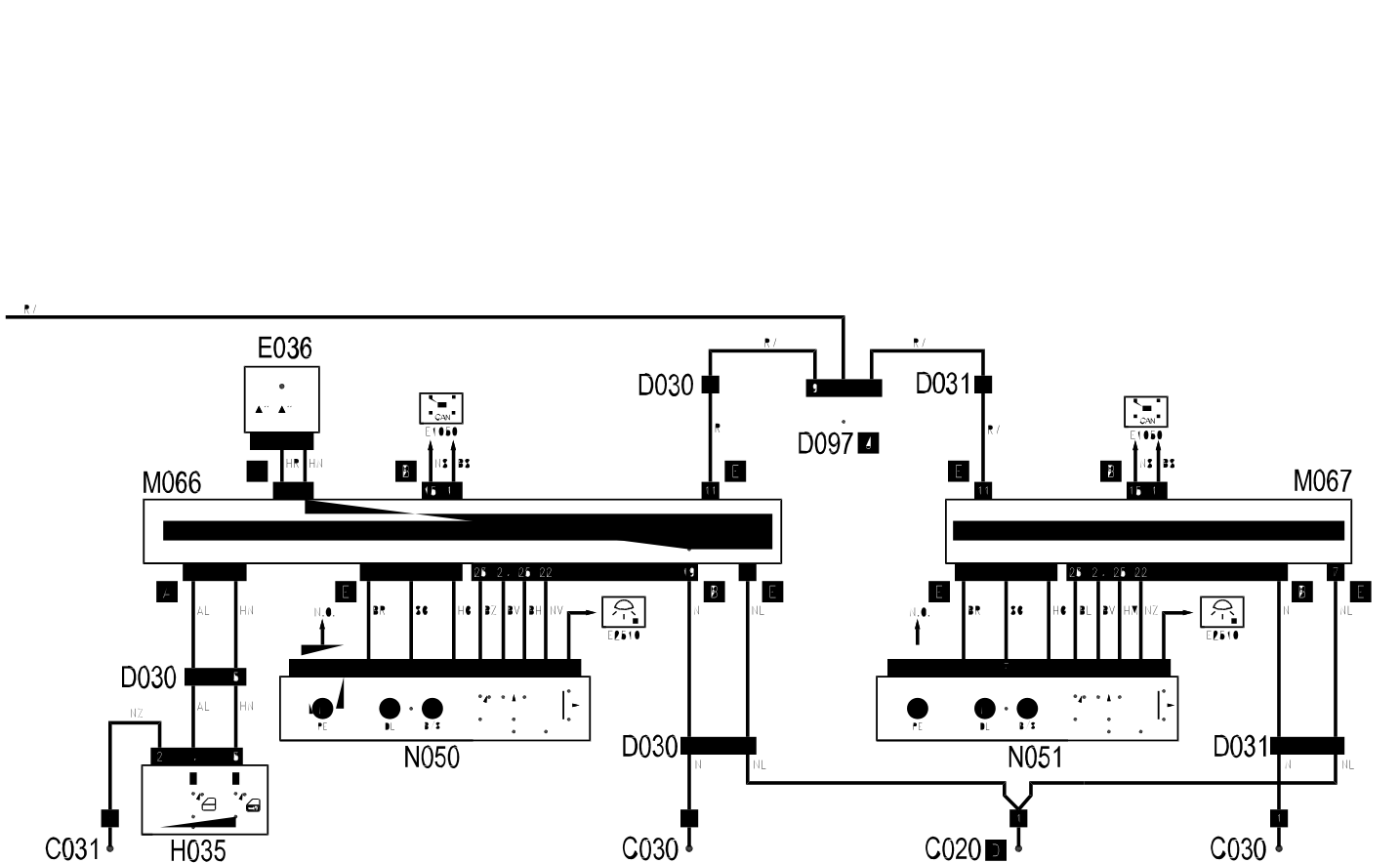

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| C20 | Passenger side dashboard earth | |
| C30 | Left rear earth | |
| C31 | Rear right earth | |
| D30 | Rear coupling for /front door. driver's side | |
| D31 | Front passenger door/ rear coupling. | |
| D97 | Short circuiting coupling | |
| E36 | Driver's front door locking / unlocking LED | 7005E |
| H1 | Ignition switch | 5520A |
| H35 | Switches on tunnel | 7040L |
| H50 | Electric window switch on .front passenger door | 7005M |
| I50 | Inertia switch | 1040A |
| I50 | Inertial switch | 1040A |
| M1 | Body computer | 5505A |
| M66 | Driver's door control unit | 5505A |
| M67 | Passenger door control unit | 5505A |
| N50 | Front driver's door lock geared motor. | 7005N |
| N51 | Front passenger door lock geared motor | 7005N |
| N51 | Passenger side front door lock geared motor | 7005N |
| P93 | Aerial for alarm and central locking receiver |
