C30 Left rear earth

Make

Lancia

Model

Ypsilon Factory Service Manual

Year

2003–2011

Section

Earths › C30 Left rear earth

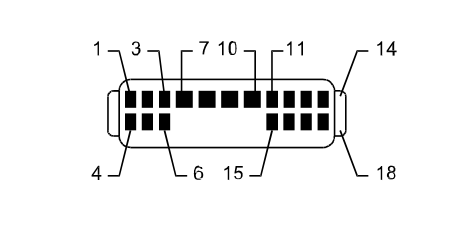

Connectors and pin-outsC30 Left rear earth

C30 Left rear earth

High setup

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		D31	1
2		NZ		G10	7
3		NZ		I33A	3
4		NZ		D30	1
5		NZ		F20	2
6		N		F21	2
7	2.5	NV		D30	31
8	2.5	N		P55A	1
10		NZ		N16	1
11		NZ		I11	2
12		N		F30	4
13	1.5	N		P50	3
14	1.5	N		D30	12
15	1.5	NG		D30	21
16	1.5	N		N57	2
17	1.5	N		I50	1

Low setup

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		D31	30
2		NZ		G10	7
3		NZ		I33A	3
4		NZ		D30	1
5		NZ		F20	2
6		N		F21	2
7	2.5	NV		D30	31
8	2.5	N		P55A	1
10		NZ		N16	1
11		NZ		I11	2
12		N		F30	4
13	1.5	N		P50	3
14	1.5	N		D30	12
15	1.5	NG		D30	21
16	1.5	N		N57	2
17	1.5	N		I50	1
