D45 Sun roof / rear coupling

Make

Lancia

Model

Ypsilon Factory Service Manual

Year

2003–2011

Section

Intermediate couplings › D45 Sun roof / rear coupling

Connectors and pin-outsD45 Sun roof / rear coupling

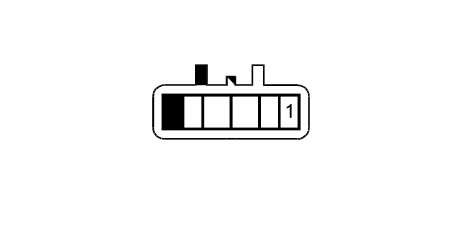

D45 Sun roof / rear coupling

Powered sunroof

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LG		D97J	2
2		MV		D20A	3
3	1.5	RB		B98	2
4	1.5	N		C31	2
5		BV		H60	3
6		MB		H60	2

Wiring	Colour
65 AIR CONDITIONING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		N35	3
2		R		N35	8
3	1.5	R		N35	6
4	1.5	N		N35	1
5		G		N35	5
6		L		N35	10
