H60 Sun roof switch

Make: Lancia
Model: Ypsilon Factory Service Manual
Year: 2003–2011
Section: Manual electric controls › H60 Sun roof switch

‹ Prev H50 Electric window switch on .front passenger door Next › H7 Cruise Control

Connectors and pin-outsH60 Sun roof switch

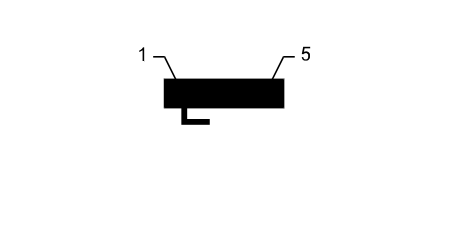

H60 Sun roof switch

Powered sunroof

H60 Sun roof switch

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		C20C	5
2		MB		D45	6
3		BV		D45	5
4		LG		D97J	6
