D4 Front / engine coupling

Make

Lancia

Model

Ypsilon Factory Service Manual

Year

2003–2011

Section

Intermediate couplings › D4 Front / engine coupling

Connectors and pin-outsD4 Front / engine coupling

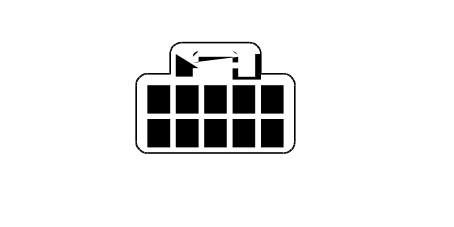

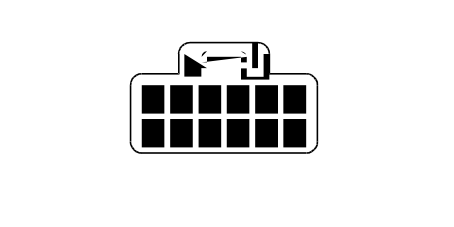

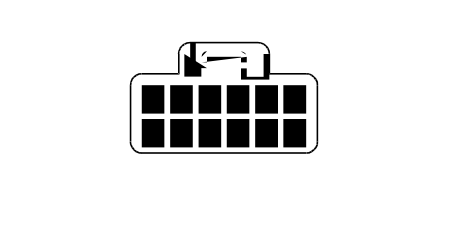

D4 Front / engine coupling

D4A – Front

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	2.5	ZG		B2A	9
B		HN		M1A	19
C		BR		D97D	8
D		M0		M86B	3
E		V0		M86B	2
F		LG		B2A	18
G		MG		M50	1
H		VB		M50	2
I		AG		D8A	5
J		HG		K120
K		MV		K120
L		NZ		K120

D4A – Engine

1.3 JTD

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	2,5	V		B1C	30
B		GR		A10A	1
C		CN		M10A	88
D		M		M10A	40
E		V		M10A	64
F		MN		K31	3
G		N		M10A	18
H		R		M10A	86
I		BV		M10A	28
J		GN		M10A	37
K		ZB		M10A	87
L		BL		M10A	10

1.2 8v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	2,5	ZG		B1C	18
B		L		A10A	1
C		BR		M10A	16
D		M	X	D4A
				M10A	29
E		V	X	D4A
				M10A	20
G		MG	X	D4A
				M10A	29
H		VB	X	D4A
				M10A	20
I		AG		M10A	27
J		RN	X	M10B	22
				K43	3
K		MV		M10A	23
L		RN	X	M10B	29
				K36	1
				K43	1

1.2 16v, 1.4 16v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	2.5	ZG		B1C	30
B		HN		A10A	1
C		BR		M10A	2
D		M		M10A	43
E		V		M10A	11
G		MG		M10A	28
H		VB		M10A	60
I		AG		M10A	40
J		HG		M10A	53
K		MV		M10B	54
L		NZ		M10A	5

D4B – Front

Wiring	Colour
12 FRONT	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A		HM		D97A	2
B		HB		K55
C		NZ		K55
D		HV		K55
E		HM		D97B	3
F		CL		I30	1
G		VG		M54A	48
H		MN		K55
I		MB		K55
J		AN		K55
K		HR		B2A	4
L		AV		M1B	29

D4B – Engine

1.3 JTD

Wiring	Colour
50 ENGINE	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A		AB		M10A	93
B		CA		M10A	15
C		NZ		M10A	32
D		G		M10A	83
E		M		M10A	92
F		SG		M10A	68
G	1	GH		M10A	29
H		S		M10A	41
I		L		M10A	35
J		B		M10A	65
K		A		M10A	78
L		C		M10A	66

1.2 8v

Wiring	Colour
50 ENGINE	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
K		HR		M10A	13
L		AV		M10A	7

1.2 16v, 1.4 16v

Wiring	Colour
50 ENGINE	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A		HM		M10A	7
B		HB		M10A	4
C		NZ	X	M10A	5
D		MN		M10A	21
E		VN		M10A	25
F		CL		M10A	57
G		VG		M10A	20
H		HV		M10A	37
I		MB		M10A	22
J		AN		M10A	54
K		HR		M10A	31
L		AV		M10A	52

D4C – Front

Cruise control

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A		HL		H7	1
B		SB		H7	6
C		SN		H7	5
D		H		H7	4

D4C – Engine

1.3 JTD

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A		LV		M10A	22
B		LN		M10A	21
C		CL		M10A	19
D		AG		M10A	20

1.2 16v, 1.4 16v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A		HL		M10A	41
B		SB		M10A	9
C		SN		M10A	8
D		H		M10A	58
