O020 Diesel heating resistance

Make

Lancia

Model

Thesis Factory Service Manual

Year

2002–2009

Section

Resistances and dimmers › O020 Diesel heating resistance

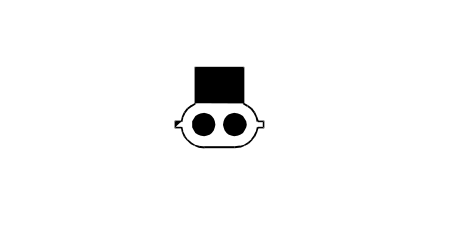

Connectors and pin-outsO020 Diesel heating resistance

O020 Diesel heating resistance

O020A – Front

2.4 JTD 10V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	HV		D004	12
2	0,5	BG		D004	13

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	HV		M010A	11
2	0,5	BG		M010A	10

O020B – Front

2.4 JTD 10V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	100,5	SN		B001C	2
B	100,5	NV		C040	1

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	100,5	SN		B001C	2
B	100,5	NV		C040	1
