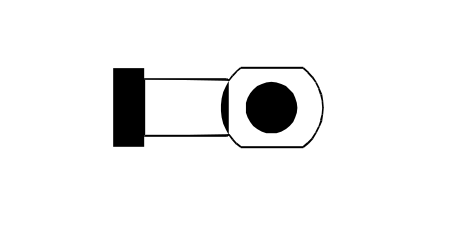

C040 Earth on engine

Make

Lancia

Model

Thesis Factory Service Manual

Year

2002–2009

Section

Earths › C040 Earth on engine

Connectors and pin-outsC040 Earth on engine

C040 Earth on engine

2.4 JTD 10V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	200,5	N		M010A	2
1	200,5	N		M010A	3
1	100,5	NV		O020B	B
1	0,75	NS		M015A	1
1	200,5	N		M010A	1
1	0,5	N		K031	2

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,75	NS		M015A	1
1	200,5	N		M010A	2
1	200,5	N		M010A	4
1	200,5	N		M010A	6
1	0,5	N		K031	2
1	100,5	NV		O020B	B

2.4 20V

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	4	M		C060	1
B	100,5	M	X	A030A	2
				A030B	2
				A030C	2
				A030D	2
				A030E	2
C	100,5	M		D004	4

3.2 V6

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

3.0 V6

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,75	NS		A030A	2
1	0,75	NS		A030D	2
1	0,75	NS		A030B	2
1	0,75	NS		A030F	2
1	1	ZN		D004	4
1	4	N		M010C	1
1	0,75	NS		A030C	2
1	0,75	NS		A030E	2

2.0 TB

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,75	NS		A030E	2
1	0,75	NS		A030C	2
1	0,75	NS		A030A	2
1	0,75	NS		A030B	2
1	4	N		M010C	1
1	0,75	NS		A030D	2
