Lancia Thesis Factory Service Manual (2002-2009)21 · Connectors and pin-outs
21 · General

I068 Passenger lumbar adjustment switch

Make
Lancia
Model
Thesis Factory Service Manual
Year
2002–2009
Section
Switches › I068 Passenger lumbar adjustment switch
Connectors and pin-outsI068 Passenger lumbar adjustment switch

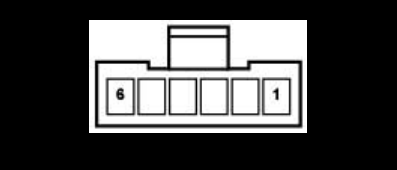

I068 Passenger lumbar adjustment switch

2.4 20V

I068 Passenger lumbar adjustment switch
WiringColour
37 RIGHT SEAT
PinCableDestination
DiameterColourNodeConnectorPin
10,5HBD1345
20,5HND1346
4100,5LRJ1082
50,5HMD1343
60,5HVD1344

2.0 TB

I068 Passenger lumbar adjustment switch
WiringColour
37 RIGHT SEAT
PinCableDestination
DiameterColourNodeConnectorPin
10,5HBD1345
20,5HND1346
4100,5LRJ1082
50,5HMD1343
60,5HVD1344

2.4 JTD 10V

I068 Passenger lumbar adjustment switch
WiringColour
37 RIGHT SEAT
PinCableDestination
DiameterColourNodeConnectorPin
10,5HBD1345
20,5HND1346
4100,5LRJ1082
50,5HMD1343
60,5HVD1344

3.0 V6

I068 Passenger lumbar adjustment switch
WiringColour
37 RIGHT SEAT
PinCableDestination
DiameterColourNodeConnectorPin
10,5HBD1345
20,5HND1346
4100,5LRJ1082
50,5HMD1343
60,5HVD1344
