D009 Front/radiator coupling

Make

Lancia

Model

Thesis Factory Service Manual

Year

2002–2009

Section

Intermediate couplings › D009 Front/radiator coupling

Connectors and pin-outsD009 Front/radiator coupling

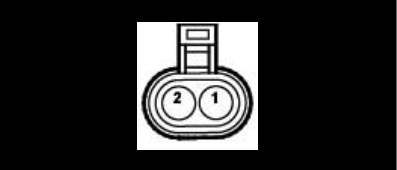

D009 Front/radiator coupling

D009A – Front

3.2 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	8	RN		B001E	B

2.4 JTD 10V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	8	RN		B001E	B

3.0 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	8	RN		B001E	B

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	8	RN		B001E	B

2.0 TB

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	8	RN		B001E	B

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	8	RN		B001E	B

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	8	RN		B001E	B

D009B – Front

3.2 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	CB		B001A	20
2	0,5	MV		M010A	62

2.4 JTD 10V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	CB		B001A	20
2	0,5	H		M010A	20

3.0 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	CB		B001A	20
2	0,5	MV		M010A	62

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	CB		B001A	20
2	0,5	H		M010A	90

2.0 TB

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	CB		B001A	20
2	0,5	MV		M010A	62

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	GB		B001A	20
2	0,5	MV		M010A	62

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	CB		B001A	20
2	0,5	H		M010A	90

D009C – Front

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	LR	X	D006	A1
				D009D	1
2	100,5	N	X	C010A	17
				D009D	2

D009D – Front

3.2 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

3.0 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	LR		D006	A1
2	100,5	N		C010A	17

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	LR	X	D006	A1
				D009C	1
2	100,5	N	X	C010A	17
				D009C	2

2.0 TB

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	LR		D006	A1
2	100,5	N		C010A	17

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	LR		D006	A1
2	100,5	N		C010A	17

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	LR	X	D006	A1
				D009C	1
2	100,5	N	X	C010A	17
				D009C	2
