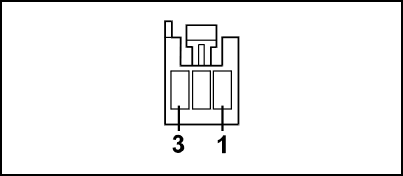

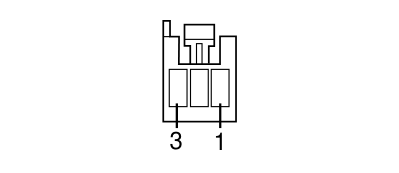

P051 Current socket in dashboard

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Various consumers › P051 Current socket in dashboard

Connectors and pin-outsP051 Current socket in dashboard

P051 Current socket in dashboard

3.0 24V V6

2.0 16V JTD

2.2 16V JTD

2.0 16v

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	2,5	G - BCP0G		See B098B ADDITIONAL FUSE BOX (REAR)	G40
3	2,5	GV - MCP0G	X	See C020D PASSENGER SIDE DASHBOARD EARTH (REAR)

2.0 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2		BCP0G		B098B	G40
3		MCP0G	X	C020D

2.2 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2		BCP0G		B098B	G40
3		MCP0G	X	C020D

3.0 24V V6

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2		BCP0G		B098B	G40
3		MCP0G	X	C020D

2.0 16V JTD, 2.2 16V JTD · MY 2005, Right hand drive

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	2,5	BCP0D		See B098B ADDITIONAL FUSE BOX (REAR)	G40
3	2,5	GV - MCP0D	X	See C020D PASSENGER SIDE DASHBOARD EARTH (REAR)	1
				See D030 DRIVER'S FRONT DOOR COUPLING	16
				See D031 PASSENGER FRONT DOOR COUPLING	16
				See D070C DRIVER'S SEAT COUPLING (REAR)	4
				See D071C PASSENGER SEAT COUPLING (REAR)	4
				See I040 HANDBRAKE APPLIED SWITCH	1
				See K125 RAIN AND DUSK SENSOR	3
				See M091 SLEWING CONTROL UNIT	1

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	2,5	BCP0G		See B098B ADDITIONAL FUSE BOX (REAR)	G40
3	2,5	GV - MCP0G	X	See C020D PASSENGER SIDE DASHBOARD EARTH (REAR)	1
				See D030 DRIVER'S FRONT DOOR COUPLING	16
				See D031 PASSENGER FRONT DOOR COUPLING	16
				See D070C DRIVER'S SEAT COUPLING (REAR)	4
				See D071C PASSENGER SEAT COUPLING (REAR)	4
				See I040 HANDBRAKE APPLIED SWITCH	1
				See K125 RAIN AND DUSK SENSOR	3
				See M091 SLEWING CONTROL UNIT	1
