P005 single tone horn

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Various consumers › P005 single tone horn

Connectors and pin-outsP005 single tone horn

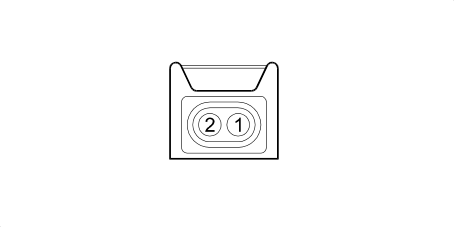

P005 SINGLE TONE HORN

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	GV - M2520		See B001F ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	26
				See C011C RIGHT FRONT EARTH (FRONT)	1
				See F011 RIGHT HEADLAMP	4
				See F011 RIGHT HEADLAMP	5
				See I010 BONNET RELEASE SWITCH	2
				See J035 PASSENGER COMPARTMENT AIR FAN RELAY	2
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER (CAF)	1
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER (CAF)	2
				See K021B RIGHT BRAKE PAD WEAR SENSOR (SWITCH) (FRONT)	1
				See K026 Engine coolant level sensor	1
				See N015 WINDSCREEN WIPER MOTOR	1
				See N025 HEADLAMP WASHER PUMP MOTOR	1
				See P090 ALARM SIREN	1
2	1,5	250		See B001G ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	3

3.0 24V V6

2.0 16V JTD

2.2 16V JTD

2.0 16v

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	GV - M2520	X	See C011C RIGHT FRONT EARTH (FRONT)
2	1,5	V - 250		See B001F ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	7

2.0 16V JTD

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		M2520	X	C011C
2		250		B001F	7

2.2 16V JTD

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		M2520	X	C011C
2		250		B001F	7

3.0 24V V6

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		M2520	X	C011C
2		250		B001F	7
