21 · General

I040 handbrake applied switch

Connectors and pin-outsI040 handbrake applied switch

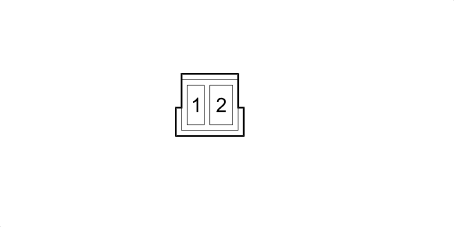

I040 HANDBRAKE APPLIED SWITCH

Wiring	Colour
See 25 REAR	MARRONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	GV - M440G	X	See C020D PASSENGER SIDE DASHBOARD EARTH (REAR)
2	0,35	C - 4411G		See M001L BODY COMPUTER (REAR)	35

2.0 16V JTD, 2.2 16V JTD · MY 2005, Right hand drive

Wiring	Colour
See 25 REAR	MARRONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	GV - M440D	X	See C020D PASSENGER SIDE DASHBOARD EARTH (REAR)	1
				See D030 DRIVER'S FRONT DOOR COUPLING	16
				See D031 PASSENGER FRONT DOOR COUPLING	16
				See D070C DRIVER'S SEAT COUPLING (REAR)	4
				See D071C PASSENGER SEAT COUPLING (REAR)	4
				See K125 RAIN AND DUSK SENSOR	3
				See M091 SLEWING CONTROL UNIT	1
				See P051 Current socket in dashboard	3
2	0,5	C - 440D		See M001L BODY COMPUTER (REAR)	35

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 25 REAR	MARRONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	GV - M440G	X	See C020D PASSENGER SIDE DASHBOARD EARTH (REAR)	1
				See D030 DRIVER'S FRONT DOOR COUPLING	16
				See D031 PASSENGER FRONT DOOR COUPLING	16
				See D070C DRIVER'S SEAT COUPLING (REAR)	4
				See D071C PASSENGER SEAT COUPLING (REAR)	4
				See K125 RAIN AND DUSK SENSOR	3
				See M091 SLEWING CONTROL UNIT	1
				See P051 Current socket in dashboard	3
2	0,5	C - 440G		See M001L BODY COMPUTER (REAR)	35

2.2 16V JTD

2.0 16V JTD

3.0 24V V6

3.0 24V V6, 2.0 16V JTD, 2.2 16V JTD

Wiring	Colour
See 25 REAR

2.0 16V JTD

Wiring	Colour
See 25 REAR

2.2 16V JTD

Wiring	Colour
See 25 REAR

3.0 24V V6

Wiring	Colour
See 25 REAR
