Wiring diagrams and electrical functionsWiring diagram

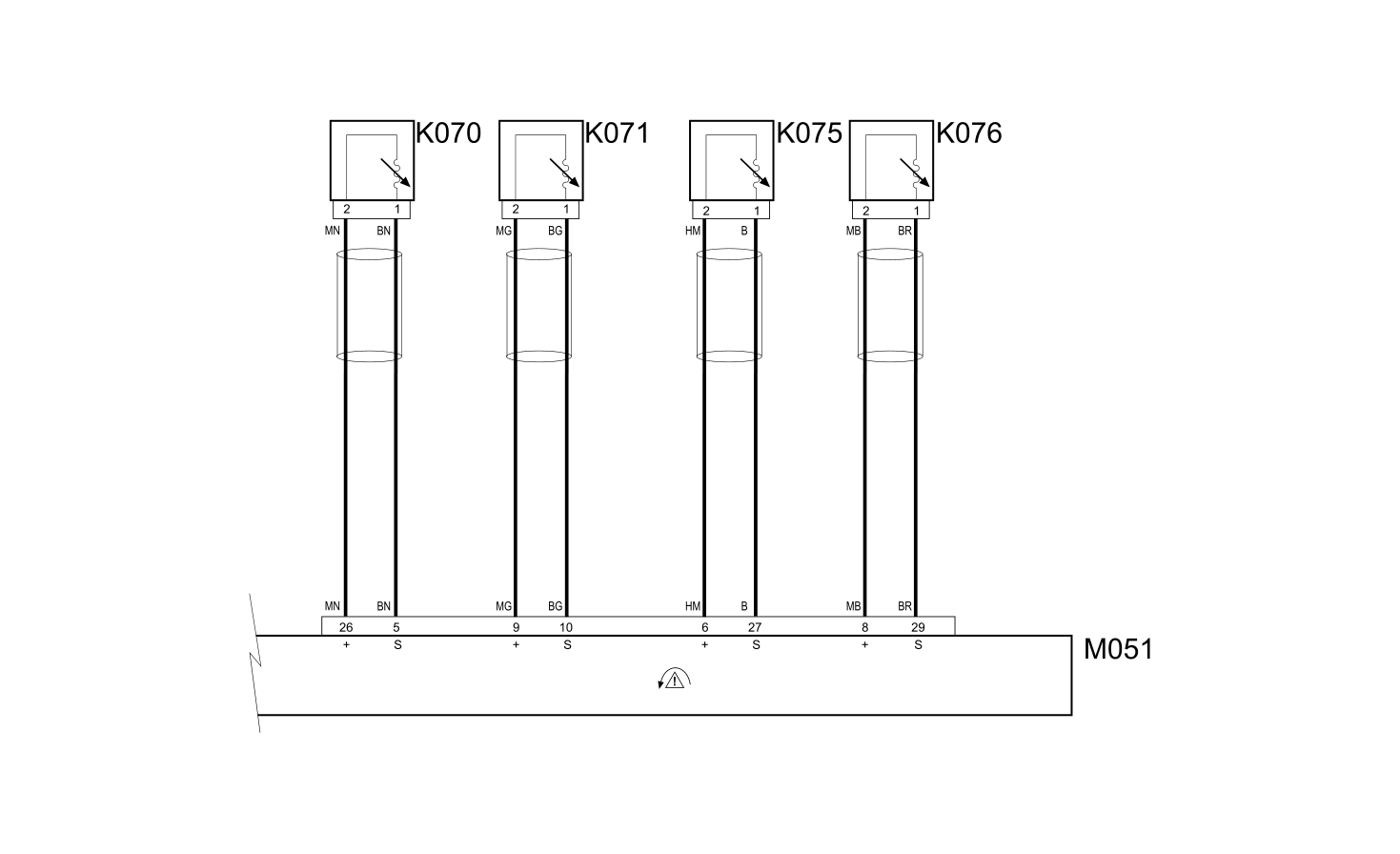

WIRING DIAGRAM
Wiring diagram
COMPONENTS
| Component code | Description | Reference to the assembly |
|---|---|---|
| B1 | engine compartment junction unit | 5505C |
| B2 | Junction unit under dashboard | 5505C |
| D1 | front/dashboard coupling | |
| E50 | Instrument panel | 5560B |
| H1 | Ignition switch | 5520A |
| H90 | Switch control panel | 7040A |
| I30 | Brake pedal switch | 5550D |
| K13 | Longitudinal acceleration sensor | |
| K70 | Left front sensor for ABS | 3340A |
| K71 | Right front sensor for ABS | 3340A |
| K74 | Slewing sensor (VDC) | 3340A |
| K75 | Left rear wheel sensor for ABS | 3340A |
| K76 | Right rear wheel sensor for ABS | 3340A |
| M1 | Body computer | 5505A |
| M10 | Engine management control unit | 1060G |
| M51 | Braking system control unit |
