H080 air conditioning controls

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Manual electric controls › H080 air conditioning controls

Connectors and pin-outsH080 air conditioning controls

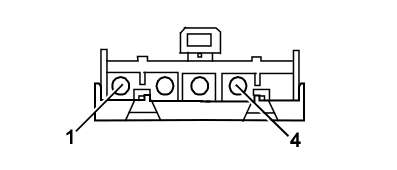

H080 AIR CONDITIONING CONTROLS

Wiring	Colour
See 67 HEATER

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N	X	See D008 AIR CONDITIONING-HEATER FRONT COUPLING	3
				See G045A AIR CONDITIONING/HEATER CONTROLS LIGHT (AIR CONDITIONING)	1
				See G045B AIR CONDITIONING/HEATER CONTROLS LIGHT (AIR CONDITIONING)	1
2	1	H		See O030 PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR	1
3	1,5	VN		See O030 PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR	2
4	2	LN		See O030 PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR	3
5	2,5	HN	X	See N085 PASSENGER COMPARTMENT AIR FAN	1
				See O030 PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR	4

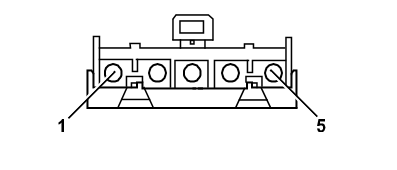

H080A – Air conditioning

Manual Air Conditioning

Wiring	Colour
See 65 AIR CONDITIONING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N	X	See H080B AIR CONDITIONING CONTROLS (AIR CONDITIONING)	4
				See G045B AIR CONDITIONING/HEATER CONTROLS LIGHT (AIR CONDITIONING)	1
				See G045A AIR CONDITIONING/HEATER CONTROLS LIGHT (AIR CONDITIONING)	1
				See D008 AIR CONDITIONING-HEATER FRONT COUPLING	3
2	1	H		See O030 PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR	1
3	1,5	VN		See O030 PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR	2
4	2,5	LN		See O030 PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR	3
5	2,5	HN	X	See N085 PASSENGER COMPARTMENT AIR FAN	2
				See O030 PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR	4

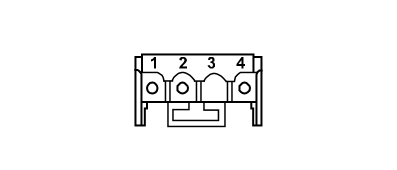

H080B – Air conditioning

Manual Air Conditioning

Wiring	Colour
See 65 AIR CONDITIONING	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AV		See D008 AIR CONDITIONING-HEATER FRONT COUPLING	5
2	0,5	AB		See N086 ELECTRONIC THERMOSTAT	1
4	0,5	N	X	See H080A AIR CONDITIONING CONTROLS (AIR CONDITIONING)	1
				See G045B AIR CONDITIONING/HEATER CONTROLS LIGHT (AIR CONDITIONING)	1
				See G045A AIR CONDITIONING/HEATER CONTROLS LIGHT (AIR CONDITIONING)	1
				See D008 AIR CONDITIONING-HEATER FRONT COUPLING	3
