D073 trailer preparation coupling
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Intermediate couplings › D073 trailer preparation coupling
Connectors and pin-outsD073 trailer preparation coupling

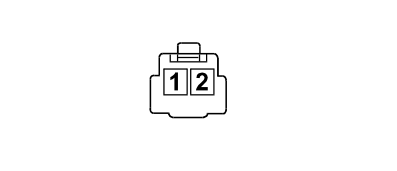

D073 TRAILER PREPARATION COUPLING
| Wiring | Colour |
|---|---|
| See 25 REAR | nero |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1,5 | C | See D006 FRONT/REAR COUPLING | B | |
| 2 | 0,35 | SV | See M084 PARKING SENSOR CONTROL UNIT | 14 | |
