P050 cigarette lighter/power socket
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Various consumers › P050 cigarette lighter/power socket
Connectors and pin-outsP050 cigarette lighter/power socket

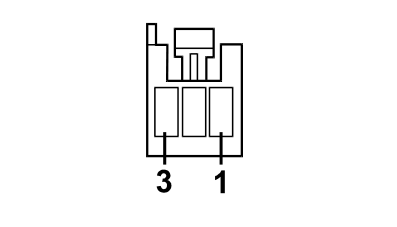

P050 CIGARETTE LIGHTER/POWER SOCKET
| Wiring | Colour |
|---|---|
| See 25 REAR | bianco |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | GR | See M001E BODY COMPUTER (REAR) | 7 | |
| 2 | 1,5 | AN | See D006 FRONT/REAR COUPLING | C | |
| 3 | 1,5 | N | See C020A PASSENGER SIDE DASHBOARD EARTH (REAR) | 5 | |
