C016 air conditioning unit earth
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Earths › C016 air conditioning unit earth
Connectors and pin-outsC016 air conditioning unit earth

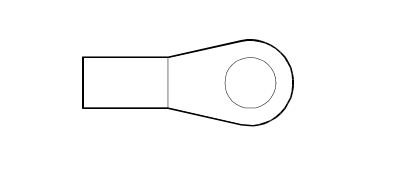

C016 AIR CONDITIONING UNIT EARTH
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 4 | N | See D008 AIR CONDITIONING-HEATER FRONT COUPLING | 3 | |
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 4 | N | See D008 AIR CONDITIONING-HEATER FRONT COUPLING | 3 | |
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 4 | N | See D008 AIR CONDITIONING-HEATER FRONT COUPLING | 3 | |
