F021 right side repeater
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Exterior lights › F021 right side repeater
Connectors and pin-outsF021 right side repeater

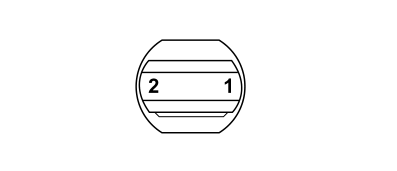

F021 RIGHT SIDE REPEATER
| Wiring | Colour |
|---|---|
| See 25 REAR |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | N | See C020A PASSENGER SIDE DASHBOARD EARTH (REAR) | 4 | |
| 2 | 0,5 | M | See M001F BODY COMPUTER (REAR) | 17 | |
