Connectors and pin-outsI50 Inertia switch

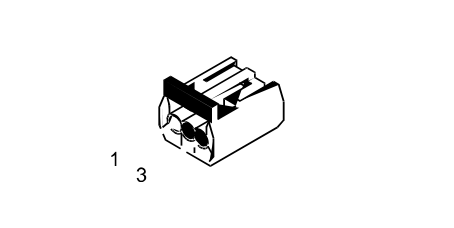

I50 Inertia switch

I050 – Rear

1.6 16v · BIPOWER, BLUPOWER

I50 Inertia switch

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	1	N	X	C031
				F031	2
				I019A
				D036	7
				C030
				D077	1
				H030	5
				G010	1
				G032	1
				D076	1
				D045	2
				F030	4
				I011A
				P052	3
				D085	6
				I018A
				D035	7
				D072
				D085	10

1.6 16v · BIPOWER

I50 Inertia switch

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2,5	N	X	C015
				D030	18
				D031	20
				M040A	20
				M040B	13
				H071	5
				M040A	4
2	2,5	S		D020	C2
3	2,5	SN	X	N040	3
				L060A	2
				L060B	2
				L060C	2
				D020	D1

1.6 16v · BLUPOWER

I50 Inertia switch

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2,5	N	X	C015
				D030	18
				D031	20
				M040A	20
				M040B	13
				H071	5
				M040A	4
2	2,5	S		D020	C2
3	2,5	SN	X	L060A	2
				L060B	2
				L060C	2
				L060D	2
				D020	D1

1.6 16v

I50 Inertia switch

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2,5	N	X	C015
				D030	18
				D031	20
				M040A	20
				M040B	13
				H071	5
				M040A	4
2	2,5	S		D020	C2
3	2,5	SN	X	N040	3
				M017	A
				D020	D1

ELX setup

I50 Inertia switch

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2	N	X	C031
				F031	2
				I019A
				D036	7
				C030
				D077	1
				H031	2
				G010	1
				G032	1
				D076	1
				D045	2
				F030	4
				I011A
				P052	3
				D085	6
				I018A
				D035	7
				D072
				D085	10

SX setup

I50 Inertia switch

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2	N	X	C031
				F031	2
				I019A
				D036	7
				C030
				D077	1
				H030	5
				G010	1
				G032	1
				D076	1
				D045	2
				F030	4
				I011A
				P052	3
				D085	6
				I018A
				D035	7
				D072
				D085	10

Euro 3

I50 Inertia switch

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2	N	X	C031
				F031	2
				I019A
				D036	7
				C030
				D077	1
				H031	2
				G010	1
				G032	1
				D076	1
				D045	2
				F030	4
				I011A
				P052	3
				D085	6
				I018A
				D035	7
				D072
				D085	10
2		SN		D020B	2
3	2	SN		N040	3

1.6 16v · BIPOWER, Euro 3

I50 Inertia switch

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	1	N	X	C031
				F031	2
				I019A
				D036	7
				C030
				D077	1
				H030	5
				G010	1
				G032	1
				D076	1
				D045	2
				F030	4
				I011A
				P052	3
				D085	6
				I018A
				D035	7
				D072	A
				D085	10
3		SN	X	N040	3
				L060A	2
				L060B	2
				L060C	2
				D006	8

All versions

I50 Inertia switch

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2,5	N	X	C015
				D030	18
				D031	20
				M040A	20
				M040B	13
				H071	5
				M040A	4
2	2,5	S		D020	C2
3	2,5	SN	X	N040	3
				D020	D1
