D45 Sunroof connection

Make

Fiat

Model

Multipla Factory Service Manual

Year

1998–2010

Section

Intermediate couplings › D45 Sunroof connection

Connectors and pin-outsD45 Sunroof connection

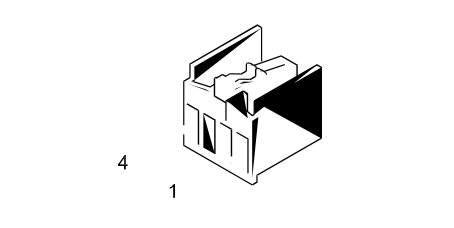

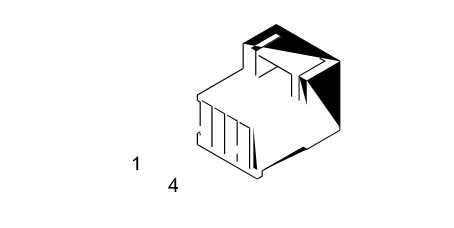

D45 Sunroof connection

Wiring	Colour
72 SUNROOF	VIOLA

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	RL	X	D45A	5
				H61	5
				H62	5
2		R	X	D45A	3
				G25	2
				G26	2
3	2,5	N	X	H61	6
				H62	6
				D45A	4
				G25	1
				G26	1
4		HM		G25	3
				G26	3

D045 – Rear

Wiring	Colour
72 SUNROOF	VIOLA

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2,5	RL	X	D045A	5
				H061	5
				H062	5
2		R	X	D045A	3
				G025	2
				G026	2
3	2,5	N	X	H061	6
				H062	6
				D045A	4
				G025	1
				G026	1
4		HM		G025	3
				G026	3

ELX setup

Wiring	Colour
25 REAR	VIOLA

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2,5	RL		D020A	11
2	2,5	N	X	C030
				D077	1
				F030	4
				I011A
				P052	3
				D085	6
				I018A
				D035	7
				D072
				C031
				F031	2
				I050	1
				I019A
				D036	7
				D085	10
				H031	2
				G010	1
				G032	1
				D076	1
				D045	2

SX setup

Wiring	Colour
25 REAR	VIOLA

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2,5	RL		D020A	11
2	2,5	N	X	C030
				D077	1
				F030	4
				I011A
				P052	3
				D085	6
				I018A
				D035	7
				D072
				C031
				F031	2
				I050	1
				I019A
				D036	7
				D085	10
				H030	5
				G010	1
				G032	1
				D076	1
				D045	2

Powered sunroof

Wiring	Colour
25 REAR	VIOLA

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2,5	RL		D020	A4
2		RV		B001G	11
3	2,5	N	X	C030
				D077	1
				H031	2
				G010	1
				G032	1
				D045	3
				F030	4
				D085	8
				D035	10
				D072	A
				D035	16
				D085	10
				P052	3
4		HM	X	D085	4
				M040B	1

D045 – Sunroof

Wiring	Colour
72 SUNROOF	VIOLA

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2,5	RL	X	D045A	5
				H061	5
				H062	5
2		R	X	D045A	3
				G025	2
				G026	2
3	2,5	N	X	H061	6
				H062	6
				D045A	4
				G025	1
				G026	1
4		HM		G025	3
				G026	3

D045A – Sunroof

Wiring	Colour
72 SUNROOF	BIANCO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1		VB		H062	3
2		ZB		H062	4
3		R		D045	2
4		N	X	H062	6
				H061	6
				D045	3
5		RL	X	H062	5
				H061	5
				D045	1
