Introduction - REMOVING REFITTING

SYMBOLS

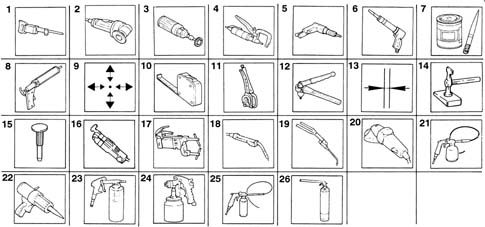

The graphic index and the description of the symbols appearing in the repair procedures are given below.

1. Cut with hack-sawing machine

2. Cut with circular saw

3. Clean with rotary brush

4. Remove spot welds with spot weld remover

5. Remove spot welds with drill. Drilling for MIG welding

6. Chiselling metal panel. Drilling for MIG welding

7. Application of electro-weldable protection

8. Application of thick electro-weldable protection

9. Centring components

10. Measurement

11. Fixing components

12. Fixing threaded rivets

13. Checking alignment gaps

14. Straightening edges with profiled stake and hammer

15. Removing weld spots with chisel and hammer

16. Removing treatment with pneumatic knife

17. Spot welding

18. MIG welding

19. Welding with oxyacetylene torch

20. Grinding

21. Application of anti-corrosion protection

22. Application of sealants

23. Application of underbody protections

24. Application of paints

25. Application of wax-based protection

26. Application of foam products

PROCESSING SYMBOLS

Cut made by hack saw or pneumatic chisel

Spot welding

Spot welding (three panels)

Continuous - sectional MIG welding

Brazing

MIG fill welding

Sealing
