A1 Battery

Make

Fiat

Model

Multipla Factory Service Manual

Year

1998–2010

Section

Starting - recharging › A1 Battery

Connectors and pin-outsA1 Battery

A1 Battery

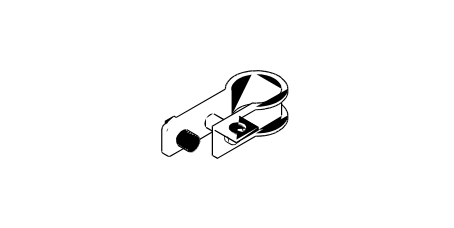

A001A – Battery positive

1.9 JTD 8V

Wiring	Colour
41 BATTERY POSITIVE	_

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	35	R		A020A	30

1.6 16v

Wiring	Colour
41 BATTERY POSITIVE	_

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	16	R		A020A	30

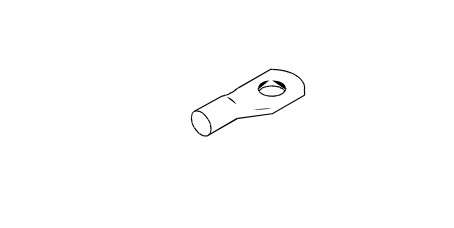

A001B – Battery negative

1.9 JTD 8V

Wiring	Colour
40 BATTERY NEGATIVE	_

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	35	N		C010C

1.6 16v

Wiring	Colour
40 BATTERY NEGATIVE	_

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	16	N		C010C

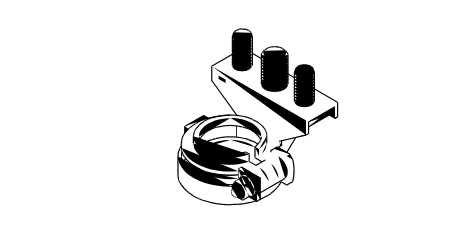

A001C – Front

Wiring	Colour
12 FRONT	_

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	16	R		B005A

A001D – Front

1.9 JTD 8V

Wiring	Colour
12 FRONT	_

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	6	R		B008

1.6 16v

Wiring	Colour
12 FRONT	_

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	4	R		B008

A001E – Front

1.9 JTD 8V

Wiring	Colour
12 FRONT	_

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	8	R		B037

A001F – Abs

Wiring	Colour
63 ABS	_

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	6	R		B007

ESP

Wiring	Colour
63 ABS	_

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	8	R		b007

A001G – Front

1.6 16v · Air Conditioner, Heater

Wiring	Colour
12 FRONT	_

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	4	N	X	M010A	27
				M010A	28
				M020	4
				C060
				D001A	15
				K040	3

1.9 JTD 8V · Air Conditioner, Heater

Wiring	Colour
12 FRONT	_

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	1	NB	X	M010A	27
				M010A	28
				M020	4
				C060
				D001A	15
				K040	3
