I11 Boot opening switch

Make

Fiat

Model

Multipla Factory Service Manual

Year

1998–2010

Section

Switches › I11 Boot opening switch

Connectors and pin-outsI11 Boot opening switch

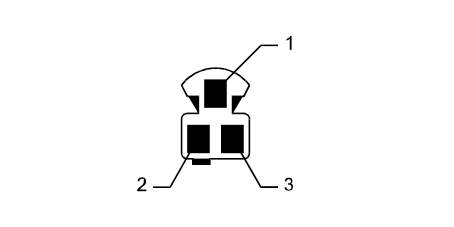

I11 Boot opening switch

I011 – Left tailgate

Wiring	Colour
27 LEFT TAILGATE	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1		HL		D085	5
2		NL	X	F040	2
				F051	1
				F050	1
				G025	1
				G026	1
				D085	10
				N057	1
				I033	1
				N016	2
3		HL	X	D085	7
				G040	2

I011A – Rear

SX setup

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
		N	X	F030	4
				P052	3
				C030
				D077	1
				H030	5
				G010	1
				G032	1
				D076	1
				D045	2
				D072
				C031
				F031	2
				I050	1
				I019A
				D036	7
				D085	10
				D085	6
				I018A
				D035	7

ELX setup

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
		N	X	F030	4
				P052	3
				C030
				D077	1
				H031	2
				G010	1
				G032	1
				D076	1
				D045	2
				D072
				C031
				F031	2
				I050	1
				I019A
				D036	7
				D085	10
				D085	6
				I018A
				D035	7

I011B – Rear

1.6 16v

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
		HL	X	D085	12
				D006	L

All versions

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
		HL	X	D085	12
				D006	5

BIPOWER, Euro 3, Taxi preparation

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
		HL	X	D085	12
				D006	6
