I10 Bonnet opening switch
- Make
- Fiat
- Model
- Multipla Factory Service Manual
- Year
- 1998–2010
- Section
- Switches › I10 Bonnet opening switch
Connectors and pin-outsI10 Bonnet opening switch

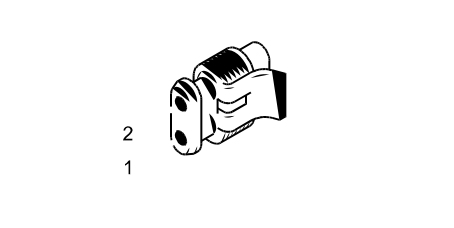

I10 Bonnet opening switch
I010 – Front
| Wiring | Colour |
|---|---|
| 12 FRONT | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connect. | Pin | |
| 1 | N | X | C011 | ||
| O020B | A | ||||
| O020A | 1 | ||||
| F021 | 1 | ||||
| N025 | 1 | ||||
| C010A | |||||
| J031 | 87 | ||||
| D008 | E | ||||
| J030 | 87 | ||||
| N030 | 1 | ||||
| M030A | 9 | ||||
| F015 | 2 | ||||
| K005 | 2 | ||||
| F010A | 1 | ||||
| F010B | 2 | ||||
| H005A | 7 | ||||
| N015 | 4 | ||||
| F012 | 1 | ||||
| F013 | 1 | ||||
| K025 | 1 | ||||
| J050 | 31 | ||||
| F020 | 1 | ||||
| F011B | 1 | ||||
| F011A | 1 | ||||
| F016 | 1 | ||||
| N031 | 1 | ||||
| P011B | |||||
| P010B | |||||
| D022 | 3 | ||||
| 2 | N | M030B | 18 | ||
| Wiring | Colour |
|---|---|
| 12 FRONT | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connect. | Pin | |
| 1 | N | X | C011 | ||
| M030A | 9 | ||||
| K005 | 2 | ||||
| D008 | E | ||||
| J030 | 87 | ||||
| N025 | 1 | ||||
| D004 | 6 | ||||
| F021 | 1 | ||||
| L020 | 2 | ||||
| F010 | 8 | ||||
| F011 | 8 | ||||
| F010 | 14 | ||||
| F011 | 14 | ||||
| P011B | |||||
| P010B | |||||
| H005A | 7 | ||||
| N015 | 4 | ||||
| K025 | 1 | ||||
| J050 | 31 | ||||
| F020 | 1 | ||||
| C010A | |||||
| 2 | B | M030B | 18 | ||
| Wiring | Colour |
|---|---|
| 12 FRONT | NERO |
