ClutchIntroduction - CLUTCH

Introduction - CLUTCH

The clutch is the dry, single plate type with a thrust bearing always in contact with the flexible coupling spring.

The driven disc is driven by the pressure exerted by a diaphram spring. The clutch release is achieved through a flexible cable operated mechanically by the pedal.

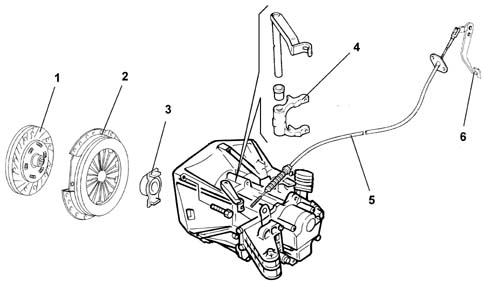

1, Driven disc

2, Flexible coupling

3, Thrust bearing

4, Release mechanism

5, Flexible cable

6, Control pedal
