P11 Horn

Make

Fiat

Model

Multipla Factory Service Manual

Year

1998–2010

Section

Various consumers › P11 Horn

Connectors and pin-outsP11 Horn

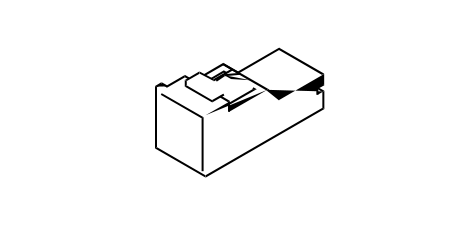

P11 Horn

P011A – Front

06/99 to 03/02, up to 05/99

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	1	Z		B001D	10

All versions

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	1	Z		B001D	11

P011B – Front

Heater

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	1	N	X	F011B	1
				F011A	1
				F016	1
				C011
				O020B	A
				I010	1
				O020A	1
				F021	1
				N025	1
				C010A
				J030	87
				D008	3
				J031	87
				N030	1
				M030A	9
				F015	2
				K005	2
				F010A	1
				F010B	2
				H005A	7
				N015	4
				F012	1
				F013	1
				K025	1
				J050	31
				F020	1
				N031	1
				P010B
				D022	3

Air Conditioner

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	1	N	X	F011B	1
				F011A	1
				F016	1
				C011
				O020B	A
				I010	1
				O020A	1
				F021	1
				N025	1
				C010A
				J030	87
				D008	E
				J031	87
				N030	1
				M030A	9
				F015	2
				K005	2
				F010A	1
				F010B	2
				H005A	7
				N015	4
				F012	1
				F013	1
				K025	1
				J050	31
				F020	1
				N031	1
				P010B
				D022	3

All versions

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
	1	N	X	F011B	1
				F011A	1
				F016	1
				O020B	A
				I010	1
				O020A	1
				F021	1
				N025	1
				C010A
				J030	87
				D008	E
				J031	87
				N030	1
				M030A	9
				F015	2
				K005	2
				F010A	1
				F010B	2
				H005A	7
				N015	4
				F012	1
				F013	1
				K025	1
				J050	31
				F020	1
				N031	1
				D022	3
