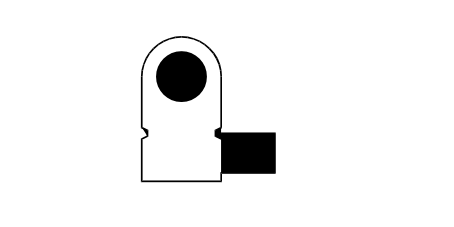

C003 BATTERY EARTH ON BODYSHELL

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 40 BATTERY NEGATIVE	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	16	N	X	See C002 BATTERY EARTH ON ENGINE	1
				See A001D BATTERY (BATTERY NEGATIVE)	1
