Connectors and pin-outsC001 battery earth

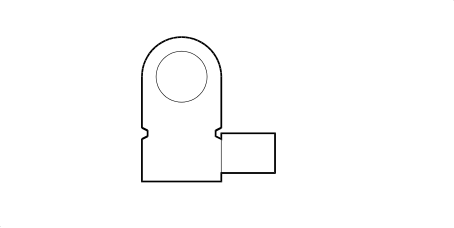

C001 BATTERY EARTH

C001A – Injection braid / engine services

1.3 JTD 16V · from 12/03 · MY 2005

C001 BATTERY EARTH
WiringColour
See 51 INJECTION BRIDGE / ENGINE SERVICES_
PinCableDestination
Sec.ColourNodeConnect.Pin
16NXSee M010A ENGINE MANAGEMENT ECU (INJECTION BRAID / ENGINE SERVICES)1
See M010A ENGINE MANAGEMENT ECU (INJECTION BRAID / ENGINE SERVICES)2
See M010A ENGINE MANAGEMENT ECU (INJECTION BRAID / ENGINE SERVICES)3
See M015A PLUG PREHEATING CONTROL UNIT (INJECTION BRAID / ENGINE SERVICES)1
See B001F JUNCTION UNIT (INJECTION BRAID / ENGINE SERVICES)11
See D029 ENGINE CABLES/ENGINE SERVICES CABLE COUPLING4

C001B – Radiator

1.4 8v, 1.6 16v · from 12/03 · BIPOWER, Climate control system, MY 2005

C001 BATTERY EARTH
WiringColour
See 11 RADIATORNERO
PinCableDestination
Sec.ColourNodeConnect.Pin
18NSee N011 ENGINE FAN MOTOR - 11

1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · Climate control system, MY 2005

C001 BATTERY EARTH
WiringColour
See 11 RADIATORNERO
PinCableDestination
Sec.ColourNodeConnect.Pin
14NSee N012 ENGINE FAN MOTOR - 22

1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

C001 BATTERY EARTH
WiringColour
See 11 RADIATORNERO
PinCableDestination
Sec.ColourNodeConnect.Pin
14NSee N011 ENGINE FAN MOTOR - 12

1.4 8v, 1.6 16v · from 12/03 · MY 2005

C001 BATTERY EARTH
WiringColour
See 11 RADIATORNERO
PinCableDestination
Sec.ColourNodeConnect.Pin
12,5NSee N011 ENGINE FAN MOTOR - 12

C001C – Radiator

1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · Climate control system, MY 2005

C001 BATTERY EARTH
WiringColour
See 11 RADIATORNERO
PinCableDestination
Sec.ColourNodeConnect.Pin
12,5NSee J039 ENGINE COOLING FAN REMOTE CONTROL SWITCH87

C1 – Engine

1.9 DIESEL

C001 BATTERY EARTH
WiringColour
See 50 ENGINE
PinCableDestination
Sec.ColourNodeConnect.Pin
12,5NxSee M15A HEATER PLUGS CONTROLUNIT ( ENGINE )1
xSee M15A HEATER PLUGS CONTROLUNIT ( ENGINE )2
xSee M010 ENGINE MANAGEMENT ECU78
xSee M010 ENGINE MANAGEMENT ECU79

C1 – Battery negative

1.2 8v, 1.6 16v

C001 BATTERY EARTH
WiringColour
See 40 BATTERY NEGATIVE
PinCableDestination
Sec.ColourNodeConnect.Pin
16NXSee C040 ENGINE EARTH
XSee A1D BATTERY ( BATTERY NEGATIVE )

1.9 JTD 8V, 1.9 DIESEL

C001 BATTERY EARTH
WiringColour
See 40 BATTERY NEGATIVE
PinCableDestination
Sec.ColourNodeConnect.Pin
30NXSee C040 ENGINE EARTH
XSee A1D BATTERY ( BATTERY NEGATIVE )
