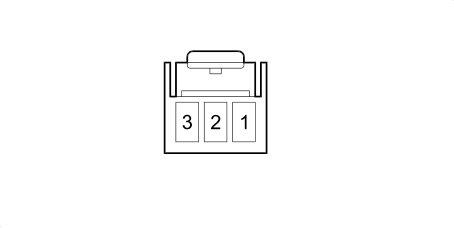

G010 FRONT COURTESY LIGHT

G010A – Rear

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	N		See C030 LEFT REAR EARTH	4
2	0,5	GR		See M001A BODY COMPUTER (REAR)	23
3	0,5	AG		See M001A BODY COMPUTER (REAR)	21

G010B – Rear

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HV		See D020A FACIA/REAR JUNCTION (FACIA)	13
2	0,5	GN		See D020A FACIA/REAR JUNCTION (FACIA)	14

G10 – Rear

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 25 REAR	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	N		See C30 LEFT REAR EARTH ( REAR )	4
2	0,5	GR		See M1A BODY COMPUTER ( REAR )	23
3	0,5	AG		See M1A BODY COMPUTER ( REAR )	21
