Fiat Doblò Factory Service Manual (2000-2010)21 · Connectors and pin-outs
21 · General

C030 left rear earth

Make
Fiat
Model
Doblò Factory Service Manual
Year
2000–2010
Section
Earths › C030 left rear earth
Connectors and pin-outsC030 left rear earth

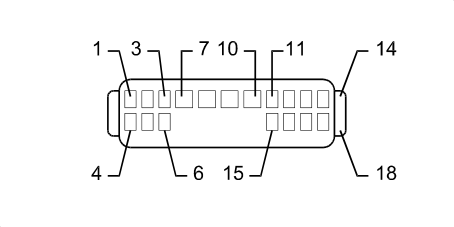

C030 LEFT REAR EARTH

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005, Sliding door

C030 LEFT REAR EARTH
WiringColour
See 25 REARNERO
PinCableDestination
Sec.ColourNodeConnect.Pin
10,5NSee E081 BUZZER SIGNALLING INCORRECT SEAT POSITION2
20,5NSee F020 LEFT SIDE REPEATER1
31,5NSee I050 INERTIA SWITCH1
40,5NSee G010A FRONT COURTESY LIGHT (REAR)1
50,5NSee F021 RIGHT SIDE REPEATER1
60,5NSee G020 REAR (CENTRE) COURTESY LIGHT1
72,5NSee D085B TAILGATE REAR SEAL/ (RIGHT SWING DOOR)B
81NSee F031 RIGHT REAR LIGHT CLUSTER (FIXED PART)1
92,5NSee D085A TAILGATE REAR SEAL/ (LEFT SWING DOOR)11
102,5NSee D085A TAILGATE REAR SEAL/ (LEFT SWING DOOR)10
111,5NSee D030 REAR/DRIVER'S FRONT DOOR COUPLING10
121,5NSee D030 REAR/DRIVER'S FRONT DOOR COUPLING18
131,5NSee P092 SUBWOOFER7
140,5NSee D030 REAR/DRIVER'S FRONT DOOR COUPLING1
151NSee F030 LEFT REAR LIGHT CLUSTER6
160,35NVSee D031 REAR/PASSENGER FRONT DOOR COUPLING7
170,5NZSee D196A RIGHT SLIDING SIDE DOOR COUPLING ( REAR LEFT DOOR )2
180,5NZSee D197A RIGHT SLIDING SIDE DOOR COUPLING ( REAR RIGHT DOOR )2

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

C030 LEFT REAR EARTH
WiringColour
See 25 REARNERO
PinCableDestination
Sec.ColourNodeConnect.Pin
10,5NSee E081 BUZZER SIGNALLING INCORRECT SEAT POSITION2
20,5NSee F020 LEFT SIDE REPEATER1
31,5NSee I050 INERTIA SWITCH1
40,5NSee G010A FRONT COURTESY LIGHT (REAR)1
50,5NSee F021 RIGHT SIDE REPEATER1
60,5NSee G020 REAR (CENTRE) COURTESY LIGHT1
72,5NSee D085B TAILGATE REAR SEAL/ (RIGHT SWING DOOR)B
81NSee F031 RIGHT REAR LIGHT CLUSTER (FIXED PART)1
92,5NSee D085A TAILGATE REAR SEAL/ (LEFT SWING DOOR)11
102,5NSee D085A TAILGATE REAR SEAL/ (LEFT SWING DOOR)10
111,5NSee D030 REAR/DRIVER'S FRONT DOOR COUPLING10
121,5NSee D030 REAR/DRIVER'S FRONT DOOR COUPLING18
131,5NSee P092 SUBWOOFER7
140,35NVSee I017B SWITCH ON RIGHT FRONT DOOR (REAR)7
151NSee F030 LEFT REAR LIGHT CLUSTER6
160,5NSee I016B SWITCH ON LEFT FRONT DOOR. (REAR)1

C30 – Rear

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

C030 LEFT REAR EARTH
WiringColour
See 25 REARnero
PinCableDestination
Sec.ColourNodeConnect.Pin
20,5NSee F20 LEFT SIDE REPEATER ( REAR )1
31,5NSee I50 INERTIA SWITCH ( REAR )1
40,5NSee G10 FRONT COURTESY LIGHT ( REAR )1
50,5NSee F21 RIGHT SIDE REPEATER ( REAR )1
60,5NSee G20 REAR (CENTRE COURTESY LIGHT) ( REAR )1
72,5NSee D85B TAILGATE REAR SEAL/ ( RIGHT DOOR )
8NSee F31 REAR RIGHT LIGHT CLUSTER ( REAR )1
92,5NSee D85A TAILGATE REAR SEAL/ ( LEFT TAILGATE )11
102,5NSee D85A TAILGATE REAR SEAL/ ( LEFT TAILGATE )10
110,5N1
120,5N1
140,35NVSee D30 FRONT LEFT DOOR CONNECTION ( REAR )7
15NSee F30 REAR LEFT LIGHT CLUSTER ( REAR )1
160,35NVSee D031 REAR/PASSENGER FRONT DOOR COUPLING7
170,35NVSee D35A REAR LEFT DOOR CONNECTION ( REAR )2
180,35NVSee D36A REAR RIGHT DOOR CONNECTION ( REAR )2
C030 LEFT REAR EARTH
WiringColour
See 25 REARnero
PinCableDestination
Sec.ColourNodeConnect.Pin
20,5NSee F20 LEFT SIDE REPEATER ( REAR )1
31,5NSee I50 INERTIA SWITCH ( REAR )1
40,5NSee P26 HANDS-FREE MICROPHONE ( REAR )1
50,5NSee F21 RIGHT SIDE REPEATER ( REAR )1
60,5NSee G20 REAR (CENTRE COURTESY LIGHT) ( REAR )1
72,5NSee D85B TAILGATE REAR SEAL/ ( RIGHT DOOR )
8NSee F31 REAR RIGHT LIGHT CLUSTER ( REAR )1
92,5NSee D85A TAILGATE REAR SEAL/ ( LEFT TAILGATE )11
102,5NSee D85A TAILGATE REAR SEAL/ ( LEFT TAILGATE )10
110,5NSee I017 SWITCH ON RIGHT FRONT DOOR1
120,5NSee I016 SWITCH ON LEFT FRONT DOOR.1
131,5N7
140,35NVSee D30 FRONT LEFT DOOR CONNECTION ( REAR )7
15NSee F30 REAR LEFT LIGHT CLUSTER ( REAR )1
160,35NVSee D031 REAR/PASSENGER FRONT DOOR COUPLING7
170,5NZSee D196A RIGHT SLIDING SIDE DOOR COUPLING ( REAR )2
180,5NZSee D197A RIGHT SLIDING SIDE DOOR COUPLING ( REAR RIGHT DOOR )2
