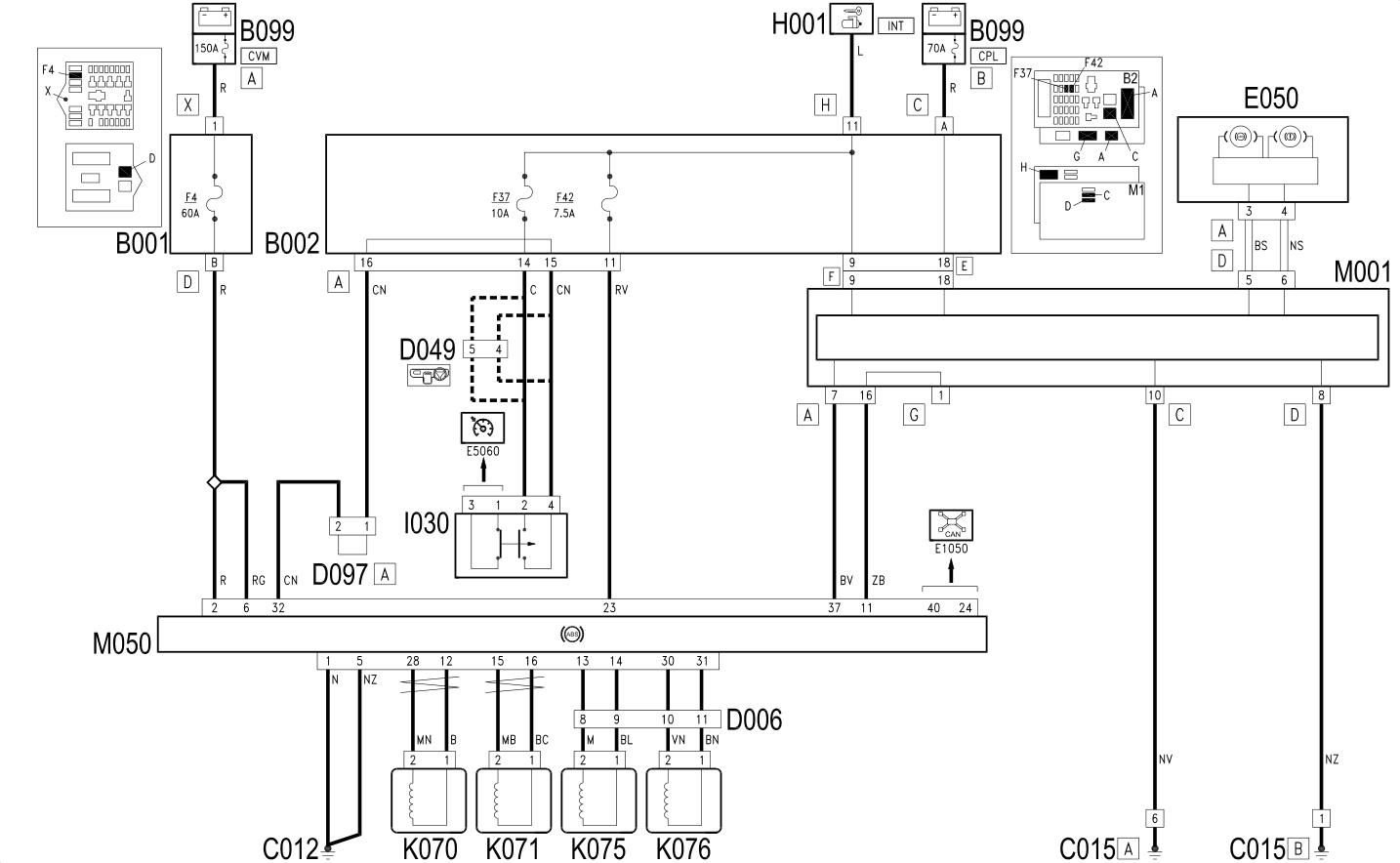

ABS - WIRING DIAGRAM

1.8 T.SPARK, 2.0 JTS, 1.9 JTD 16V

Wiring diagram

Components

Component code	Description	Reference to the assembly
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C12	ABS FRONT EARTH
C15	FACIA EARTH, DRIVER''S SIDE
D6	REAR / ENGINE COMPARTMENT JUNCTION
D49	PEDAL ASSEMBLY JOIN
D97	SHORT CIRCUITING COUPLING
E50	ENGINE CONTROL AND MANAGEMENT SYSTEMS	Op. 5560B ANALOGUE CONTROL PANEL
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
K70	Left front wheel sensor for ABS	Op. 3340A ABS CHECK/ADJUSTMENT DEVICES
K71	Right front wheel sensor for ABS	Op. 3340A ABS CHECK/ADJUSTMENT DEVICES
K75	Left rear wheel sensor for ABS	Op. 3340A ABS CHECK/ADJUSTMENT DEVICES
K76	Right rear wheel sensor for ABS	Op. 3340A ABS CHECK/ADJUSTMENT DEVICES
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M10	ENGINE MANAGEMENT ECU	Op. 1056B ALIMENTAZIONE MULTI-POINT INJECTION (MPI)
M10	ENGINE MANAGEMENT ECU	Op. 1060G PRESSURE PUMP ELECTRIC CONTROL
M50	ABS control unit	Op. 3340A ABS CHECK/ADJUSTMENT DEVICES
