Alfa Romeo GT Factory Service Manual (2003-2010)08 · Engine
08 · Engine

Thermostat- r + r

Make
Alfa Romeo
Model
GT Factory Service Manual
Year
2003–2010
Section
Engine cooling › Thermostat- r + r
EngineThermostat- r + r

THERMOSTAT- R + R

Operation 1088C40 · WATER PUMP AND THERMOSTAT

2.0 JTS

Removing

Position the vehicle on the ramp

Ensure that the ignition key is in the OFF position, then disconnect the negative battery terminal (-).

NameConnector
BatterySee A1B BATTERY ( BATTERY NEGATIVE )

Proceed with removal

Op. 1016A40 IGNITION COIL COVER ON CYLINDER HEAD- R+R

Proceed with removal

Proceed with removal

Op. 1048A59 PIPE from flow meter to throttle casing hose - R.R.

Proceed with removal

1. Disconnect the lower coolant outlet hose from the radiator and drain the engine coolant.

Op. 5530B10 BATTERY - R+R

Op. 7055B54 UNDER-ENGINE GUARD - R R

Manually press the springs and remove the rapid attachment for the hose.

Recover the coolant using a suitable container.

THERMOSTAT- R + R

1. Disconnect the electrical connection from the engine coolant temperature sensor.

NameConnector
1Engine temperature sender unitSee K36 ENGINE TEMPERATURE SENDER UNIT ( CONNECTORS )
THERMOSTAT- R + R

1. Loosen the band and disconnect the coolant return pipe from the engine coolant reservoir, thermostat side.

2. Loosen band and disconnect the upper coolant inlet hose to the radiator, thermostat side.

3. Loosen the band and disconnect the coolant return pipe to the climate control heater, thermostat side.

4. Loosen the band and disconnect the engine oil heat exchanger flexible coolant supply pipe, rigid pipe side.

THERMOSTAT- R + R

1. Undo the bolts (1a) and remove the thermostat (1b), complete with engine coolant temperature sensor (1c) and O-Ring (1d).

THERMOSTAT- R + R

Refitting

1. Place the thermostat (1a), complete with engine coolant temperature sensor (1b) and O-Ring (1c) back in its housing and secure it by tightening the bolts (1d) to the recommended torque.

FasteningComponentØ

Value

(daNm)

1dBoltTHERMOSTATM8(Cylinder head side) 2.3 ÷ 2.8
THERMOSTAT- R + R

Connect the coolant supply pipe to the engine oil heat exchanger, thermostat side, and tighten the band.

Connect the engine coolant return pipe from the climate control system heater, thermostat side, and tighten the band.

Connect the upper coolant inlet hose to the radiator, thermostat side, and tighten the band.

Connect the engine coolant return pipe to the supply reservoir, thermostat side and tighten the band.

Connect the electrical connection to the engine coolant temperature sensor.

Connect the rapid attachment for the bottom coolant outlet hose from the radiator.

Proceed with refitting

Op. 7055B54 UNDER-ENGINE GUARD - R R.

Proceed with refitting

Op. 5530B10 BATTERY - R+R.

Proceed with refitting

Op. 1048A59 PIPE from flow meter to throttle casing hose - R.R..

Proceed with refitting

Op. 1016A40 IGNITION COIL COVER ON CYLINDER HEAD- R+R.

Connect the negative (-) battery terminal

Refill the engine cooling system with coolant

Op. 0010T20 COOLANT CHECK DENSITY AND TOP UP IF NECESSARY.

Remove the car from the ramps.

3.2 V6

Removing

Position the vehicle on the ramp

Proceed with removal

Op. 7055B54 UNDER-ENGINE GUARD - R R

1. Press the two rapid attachment clips, by hand, and disconnect the lower coolant outlet hose from the radiator, radiator side.

Connect the rapid attachment for the lower coolant outlet hose to the radiator, radiator side.

Recover the coolant using a suitable container.

THERMOSTAT- R + R

Proceed with removal

Op. 5530B10 BATTERY - R+R

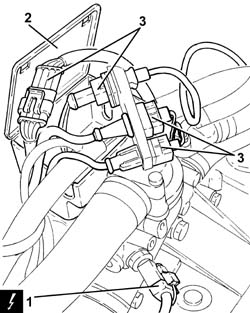

1. Disconnect the electrical connection from the engine coolant temperature sensor.

2. Open the electrical connections box.

NameConnector
1Engine temperature sender unitSee K36 ENGINE TEMPERATURE SENDER UNIT ( CONNECTORS )

3. Extract the electrical connections and the wiring from the electrical connections box.

THERMOSTAT- R + R

1. Loosen band and disconnect the upper coolant inlet hose to the radiator, thermostat side.

2. Loosen the band and disconnect the lower radiator coolant outlet hose from the radiator, thermostat side.

3. Loosen the band and disconnect the coolant supply pipe from the climate control heater, thermostat side.

4. Undo the bolts (4a) and remove the thermostat (4b) complete with electrical connections box (4c).

At the bench, separate the thermostat from the electrical connections box.

THERMOSTAT- R + R

Refitting

Assemble the thermostat and the electrical connections box.

1. Place the thermostat (1a) back in its housing complete with electrical connections box (1b) and secure it tightening the bolts (1c) to the recommended torque.

FasteningComponentØ

Value

(daNm)

1cBoltTHERMOSTATM6(Cylinder head side) 0.8 ÷ 1.0

2. Connect the engine coolant return pipe from the climate control system heater, thermostat side, and tighten the band.

3. Connect the lower coolant outlet hose from the radiator, thermostat side, and tighten the band.

4. Connect the upper coolant inlet hose to the radiator, thermostat side, and tighten the band.

THERMOSTAT- R + R

Place the electrical connections and the wiring in their housings in the electrical connections box.

Connect the electrical connection to the engine coolant temperature sensor.

Proceed with refitting

Op. 5530B10 BATTERY - R+R.

Refill the engine cooling system with coolant

Op. 0010T20 COOLANT CHECK DENSITY AND TOP UP IF NECESSARY.

Proceed with refitting

Op. 7055B54 UNDER-ENGINE GUARD - R R.

Remove the car from the ramps.

1.9 JTD 16V

Removing

Position the vehicle on the ramp

Proceed with removal

- 1016A10 sound-proofing cover - r + r

Proceed with removal

Proceed with removal

Op. 5530B10 BATTERY - R+R

Proceed with removal

1. Loosen the band and disconnect the coolant return pipe from the engine coolant reservoir, thermostat side.

Op. 5530B52 BATTERY DRIP TRAY/SUPPORT - R.R.

2. Loosen the band and disconnect the upper coolant inlet hose to the radiator, thermostat side.

3. Loosen the band and disconnect the coolant return pipe to the climate control heater, thermostat side.

Op. 7055B54 UNDER-ENGINE GUARD - R R

4. Loosen the band and disconnect the coolant supply pipe to the water/exhaust gas heat exchanger for the E.G.R. system, thermostat side.

5. Disconnect the electrical connection from the engine coolant temperature sensor.

Recover the coolant which comes out in a suitable container.

NameConnector
5Engine temperature sender unitSee K36 ENGINE TEMPERATURE SENDER UNIT ( CONNECTORS )
THERMOSTAT- R + R

1. Undo the bolts (1a) and remove the thermostat (1b) complete with O-Ring (1c).

THERMOSTAT- R + R

Refitting

1. Refit thermostat (1a), complete with O-ring (1b) and secure by tightening the bolts (1c) to the recommended torque.

FasteningComponentØ

Value

(daNm)

1c
THERMOSTAT- R + R

Connect the electrical connection to the engine coolant temperature sensor.

Connect the engine coolant supply pipe to the EGR system water/exhaust gas heat exchanger, thermostat side and tighten the band.

Connect the engine coolant return pipe from the climate control system heater, thermostat side, and tighten the band.

Connect the upper coolant inlet hose to the radiator, thermostat side, and tighten the band.

Connect the engine coolant return pipe to the supply reservoir, thermostat side and tighten the band.

Proceed with refitting

Op. 7055B54 UNDER-ENGINE GUARD - R R.

Proceed with refitting

Op. 5530B52 BATTERY DRIP TRAY/SUPPORT - R.R..

Proceed with refitting

Op. 5530B10 BATTERY - R+R.

Refill the engine cooling system with coolant

Op. 0010T20 COOLANT CHECK DENSITY AND TOP UP IF NECESSARY.

Proceed with refitting

- 1016A10 sound-proofing cover - r + r

Remove the car from the ramps.

1.8 T.SPARK

Removing

Position the vehicle on the ramp.

Ensure that the ignition key is in the OFF postition, then disconnect the battery negative terminal.

NameConnector
BatterySee A1B BATTERY ( CONNECTORS )

1. Disconnect the lower coolant outlet hose from the radiator and drain the engine coolant.

Manually press the springs and remove the hose''s rapid attachment.

Recover the coolant using a suitable container.

THERMOSTAT- R + R

1. Disconnect the electrical connection from the air flow meter.

NameConnector
1Air flow meterSee K41 AIR FLOW METER ( CONNECTORS )

Disconnect the electrical wiring for the flow meter from the fastening on the air intake sleeve.

2. Disconnect the oil vapour recirculation pipe from the air intake duct.

3. Undo the bolts (3a) and remove the air intake hose (3b) complete with air flow meter (3c).

THERMOSTAT- R + R

1. Disconnect the electrical connection from the engine coolant temperature sensor.

NameConnector
1Engine temperature sender unitSee K36 ENGINE TEMPERATURE SENDER UNIT ( ENGINE )

2. Disconnect the coolant return pipe to the climate control heater, thermostat side.

3. Disconnect the coolant return pipe to the engine coolant reservoir, thermostat side.

4. Disconnect the upper coolant inlet hose to the radiator, thermostat side.

5. Disconnect the coolant supply pipe to the engine oil heat exchanger, thermostat side.

6. Undo the bolts (6a) and remove the thermostat (6b) complete with gasket.

THERMOSTAT- R + R

Refitting

Place the thermostat, complete with gasket, back in its housing and fix it tightening the bolts to the recommended torque.

FasteningComponentØ

Value

(daNm)

BoltTHERMOSTATM8(Cylinder head side) 2.3 ÷ 2.8

Connect the coolant supply pipe to the engine oil heat exchanger, thermostat side.

Connect the upper coolant inlet hose to the radiator, thermostat side.

Connect the coolant return pipe to the engine coolant reservoir, thermostat side.

Connect the coolant supply pipe to the climate control heater, thermostat side.

Connect the electrical connection to the engine coolant temperature sensor.

Refit the air intake hose with air flow meter and secure with collars.

Connect the oil vapour recirculation pipe to the air intake duct.

Connect the electrical connection to the air flow meter and secure the electrical wiring to the fastening on the air intake sleeve.

Connect the lower coolant outlet hose to the radiator.

Connect the battery terminal (-).

Refill the engine cooling system with coolant

Op. 0010T20 COOLANT CHECK DENSITY AND TOP UP IF NECESSARY

Remove the car from the ramp.
