INTRODUCTION - ENGINE COOLING

2.0 JTS

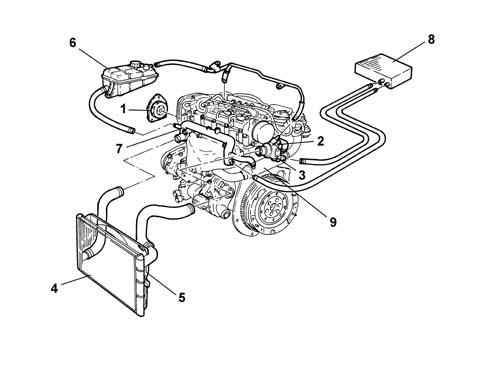

CONSTRUCTION FEATURES

COOLING SYSTEM

1 - Water pump

2 - Engine coolant temperature sensor

3 - Thermostat

4 - Radiator

5 - Electric fan

6 - Reservoir

7 - Rigid coolant pump intake pipe

8 - Engine oil heat exchanger

9 - Climate control system heater

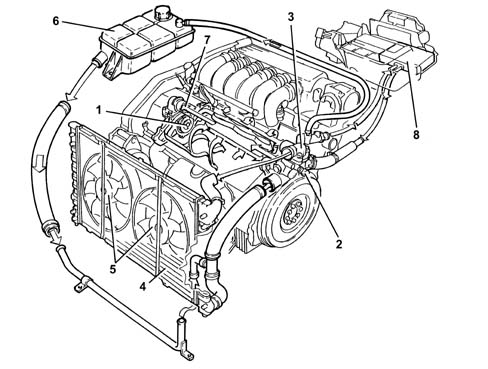

3.2 V6

OPERATION

COOLING SYSTEM

1 - Water pump

2 - Engine coolant temperature sensor

3 - Thermostat

4 - Radiator

5 - Electric fans

6 - Reservoir

7 - Water pump rigid inlet pipe

8 - Heater unit

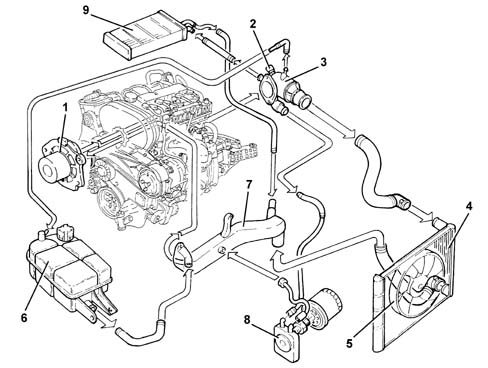

1.9 JTD 16V

CONSTRUCTION FEATURES

COOLING SYSTEM

1 - Water pump

2 - Engine coolant temperature sensor

3 - Thermostat

4 - Radiator

5 - Electric fan

6 - Reservoir

7 - Rigid coolant pump intake pipe

8 - Engine oil heat exchanger

9 - Climate control system heater

10 - E.G.R. exhaust gas heat exchanger

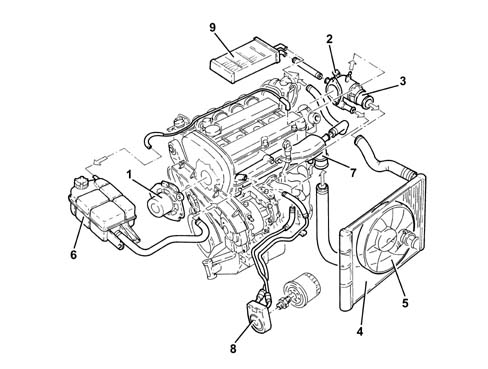

1.8 T.SPARK

CONSTRUCTION FEATURES

ENGINE COOLING SYSTEM

1 - Water pump

2 - Engine coolant temperature sensor

3 - Thermostat

4 - Radiator

5 - Electric fan

6 - Reservoir

7 - Water pump rigid inlet pipe

8 - Water/oil heat exchanger

9 - Heater unit
