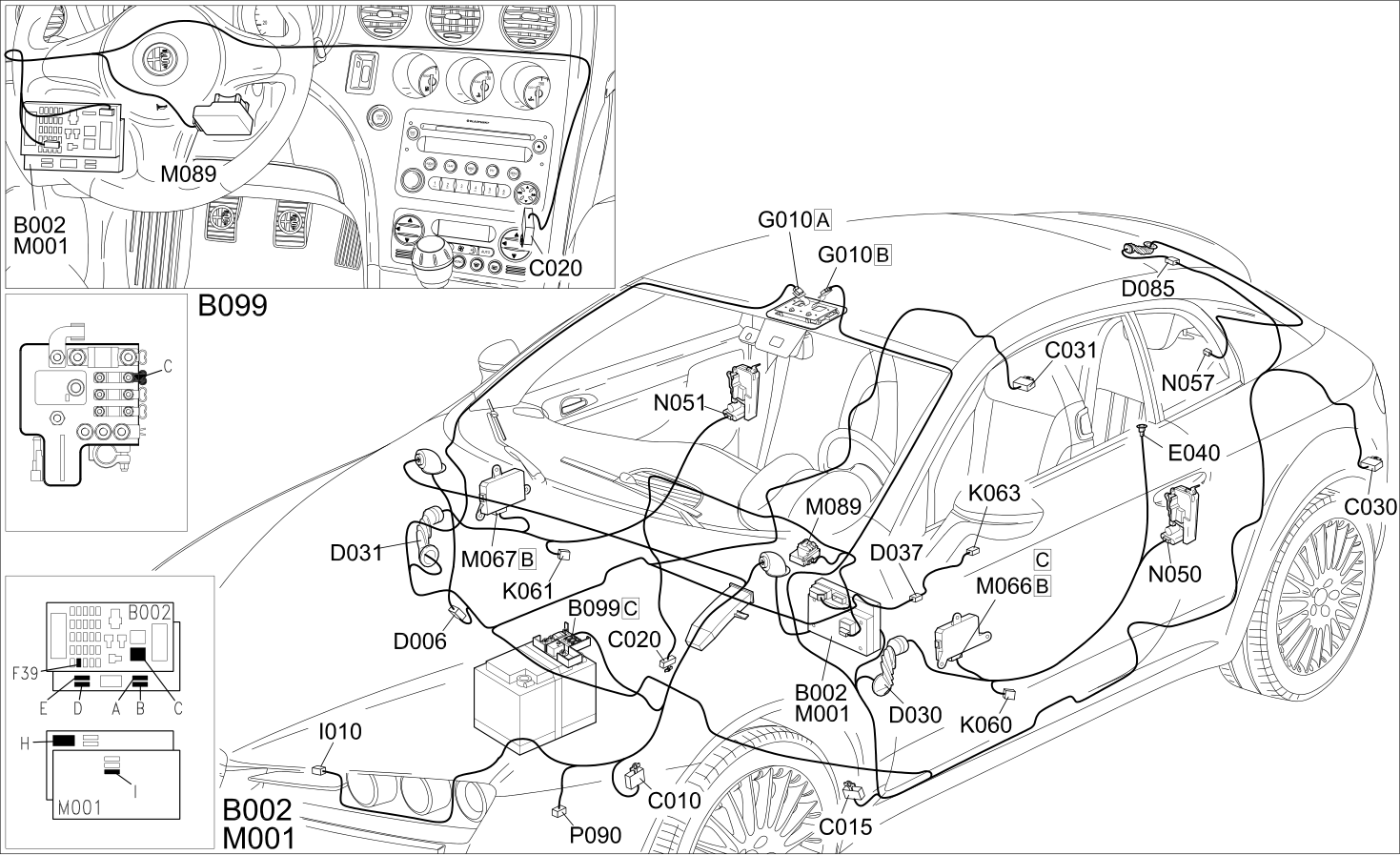

ALARM - COMPONENT LOCATION

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C010	LEFT FRONT EARTH
C015	DASHBOARD EARTH, DRIVER'S SIDE
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D006	FRONT/REAR COUPLING
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D037	REAR COUPLING/ CENTRE CONSOLE
D085	REAR/TAILGATE COUPLING
E040	ALARM LED	Op. 5580E18 ANTI-THEFT DEVICE W/L - R+R FOLLOWING ELECTRICAL WIRING CHECK
G010	FRONT COURTESY LIGHT	Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R
I010	BONNET RELEASE SWITCH	Op. 7025A34 BONNET LID LOCK (ONE) - R+R OR REPAIR
K060	VOLUMETRIC SENSOR FOR LEFT ALARM	Op. 5580E50 ANTITHEFT DEVICE VOLUMETRIC SENSOR R R FOLLOWING ELECTRICAL CIRCUIT CHECK
K061	VOLUMETRIC SENSOR FOR RIGHT ALARM	Op. 5580E50 ANTITHEFT DEVICE VOLUMETRIC SENSOR R R FOLLOWING ELECTRICAL CIRCUIT CHECK
K063	ANTI-TILT SENSOR
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M066	DRIVER'S DOOR CONTROL UNIT (NPG)	Op. 5505A43 CONTROL UNIT (DIGITAL NETWORK NODE) IN DRIVER'S DOOR - R.R. WITH PANEL REMOVED
M067	PASSENGER DOOR CONTROL UNIT (NPP)	Op. 5505A47 PASSENGER SIDE DOOR CONTROL UNIT DIGITAL NETWORK MODE R R WITH PANEL REMOVED
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
N050	DRIVER'S FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N057	BOOT LOCK GEARED MOTOR	Op. 7015B10 SINGLE TAILGATE LOCK - R+R OR REPAIR WITH PANEL/PROTECTION REMOVED
P090	ALARM SIREN	Op. 5580E40 ANTI-THEFT DEVICE SIREN - R+R
