I010 bonnet release switch
- Make
- Alfa Romeo
- Model
- Brera and Spider Factory Service Manual
- Year
- 2005–2010
- Section
- Switches › I010 bonnet release switch
Connectors and pin-outsI010 bonnet release switch

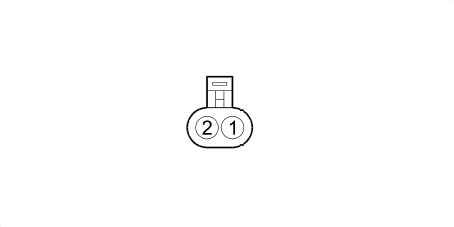

I010 BONNET RELEASE SWITCH
| Wiring | Colour |
|---|---|
| See 12 FRONT | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | BH | See M001B BODY COMPUTER (FRONT) | 24 | ||
| 2 | NZ | See C010 LEFT FRONT EARTH | 20 | ||
