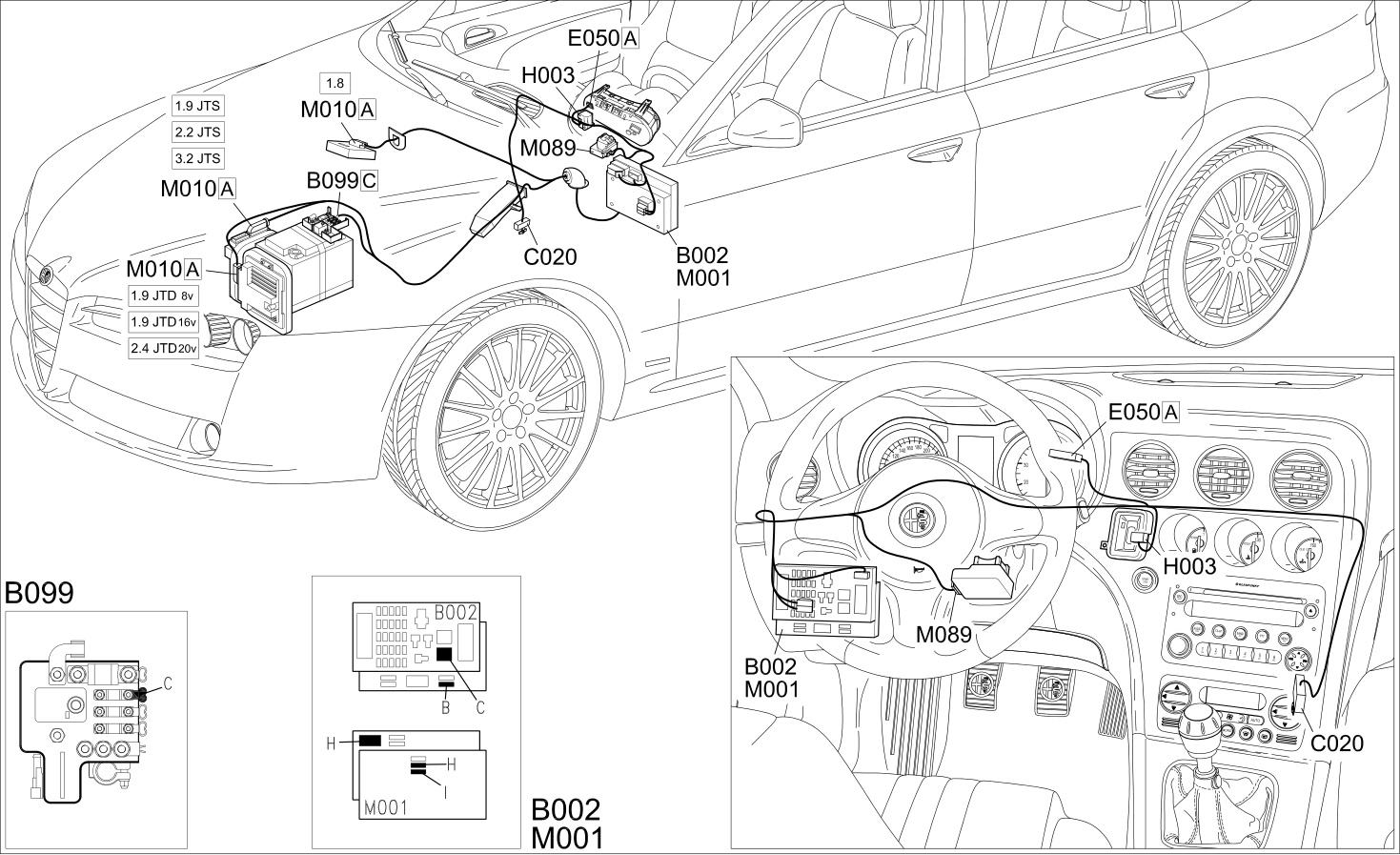

CODE - COMPONENT LOCATION

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C020	PASSENGER SIDE DASHBOARD EARTH
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H003	IGNITION DEVICE	Op. 5505A31 ELECTRONIC KEY ACKNOWLEDGEMENT DEVICE - R. R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M010	ENGINE MANAGEMENT ECU	Op. 1056F82 CONTROL UNIT SINGLE OF INJECTION IGNITION SYSTEM R R Op. 1060G80 DIESEL ELECTRONIC INJECTION CONTROL UNIT - .R
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
