INSTRUMENT PANEL - COMPONENT LOCATION

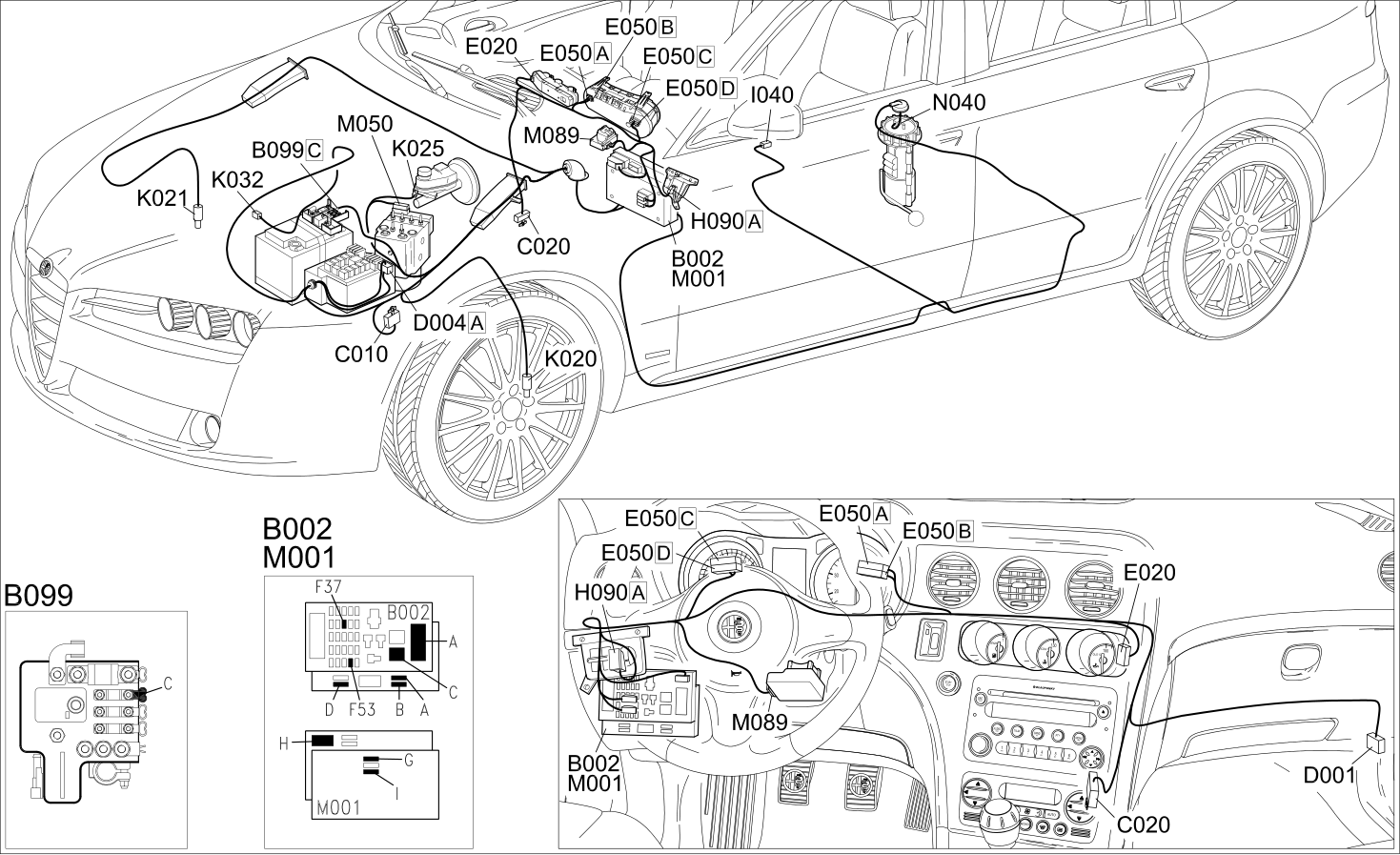

1.9 JTD 8V, 1.9 JTD 16V, 2.4 JTD 20V

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C010	LEFT FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D001	FRONT/DASHBOARD COUPLING
D004	FRONT/ENGINE COUPLING
E020	ANCILLARY INSTRUMENT	Op. 5560C51 COMBINED ANALOGUE CONTROL PANEL - R+R OR REPLACE
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
I040	HANDBRAKE SWITCH	Op. 5550D18 HANDBRAKE ON WARNING LIGHT SWITCH - R+R
K020	LEFT BRAKE PAD WEAR SENSOR (SWITCH)	Op. 3310A60 FRONT BRAKE PADS - REPLACE
K021	RIGHT BRAKE PAD WEAR SENSOR (SWITCH)	Op. 3310A60 FRONT BRAKE PADS - REPLACE
K025	BRAKE FLUID LEVEL SENSOR (SWITCH)	Op. 3330C44 BRAKE FLUID MINIMUM W/L SWITCH - R + R
K032	ENGINE OIL LEVEL SENSOR	Op. 1084A40 ENGINE OIL LEVEL SENSOR - R + R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M050	ABS CONTROL UNIT	Op. 3340A20 ABS ELECTRONIC CONTROL UNIT - R+R
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
N040	FUEL PUMP AND LEVEL GAUGE	Op. 1040A70 SUBMERGED PUMP ASSEMBLY COMPLETE WITH LEVEL GAUGE CONTROL - R + R

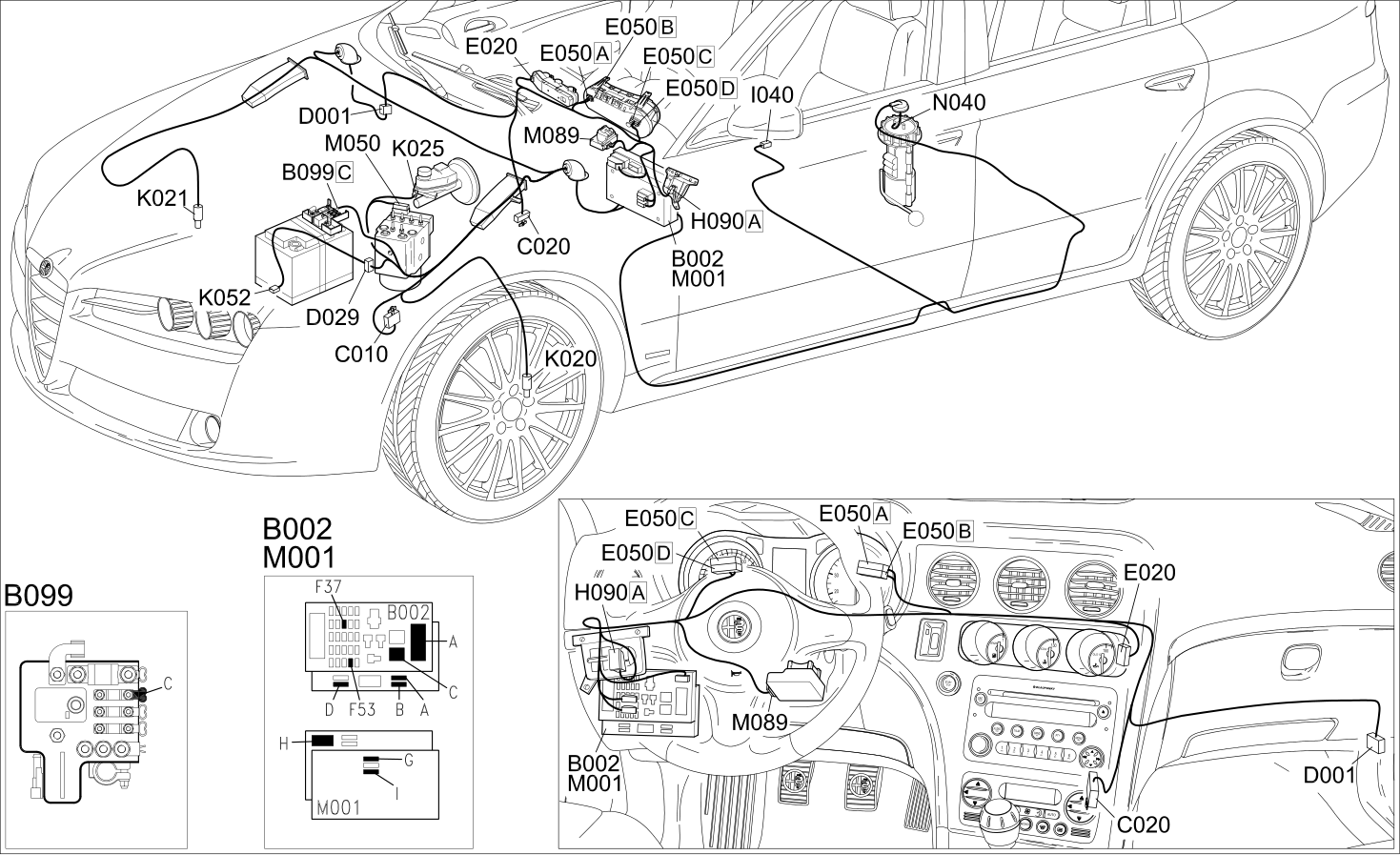

1.8

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C010	LEFT FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D001	FRONT/DASHBOARD COUPLING
D029	ENGINE CABLES/ENGINE SERVICES CABLE COUPLING
E020	ANCILLARY INSTRUMENT	Op. 5560C51 COMBINED ANALOGUE CONTROL PANEL - R+R OR REPLACE
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
I040	HANDBRAKE SWITCH	Op. 5550D18 HANDBRAKE ON WARNING LIGHT SWITCH - R+R
K020	LEFT BRAKE PAD WEAR SENSOR (SWITCH)	Op. 3310A60 FRONT BRAKE PADS - REPLACE
K021	RIGHT BRAKE PAD WEAR SENSOR (SWITCH)	Op. 3310A60 FRONT BRAKE PADS - REPLACE
K025	BRAKE FLUID LEVEL SENSOR (SWITCH)	Op. 3330C44 BRAKE FLUID MINIMUM W/L SWITCH - R + R
K052	ENGINE OIL LEVEL AND TEMPERATURE SENSOR
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M050	ABS CONTROL UNIT	Op. 3340A20 ABS ELECTRONIC CONTROL UNIT - R+R
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
N040	FUEL PUMP AND LEVEL GAUGE	Op. 1040A70 SUBMERGED PUMP ASSEMBLY COMPLETE WITH LEVEL GAUGE CONTROL - R + R

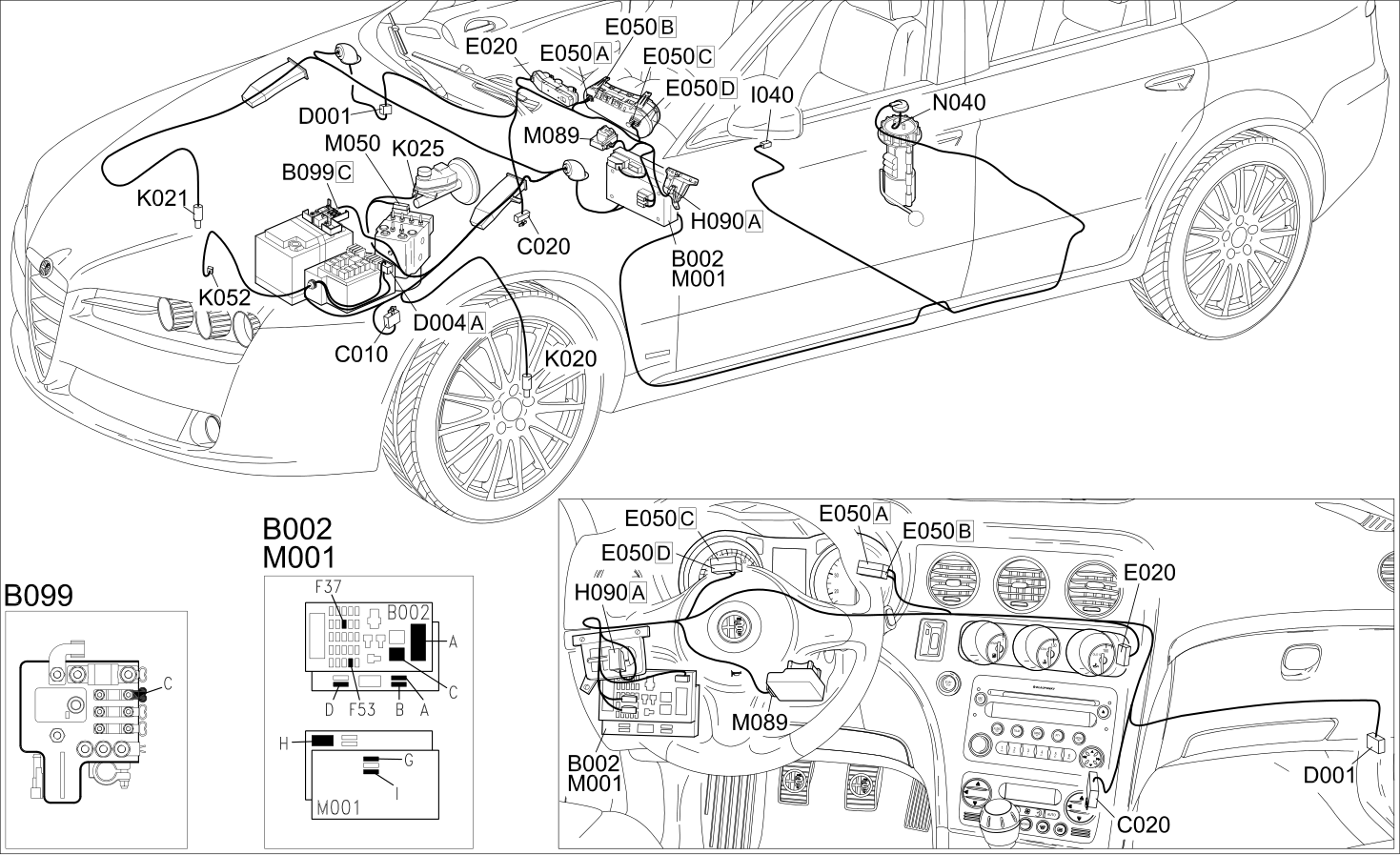

1.9 JTS, 2.2 JTS, 3.2 JTS

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C010	LEFT FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D001	FRONT/DASHBOARD COUPLING
D004	FRONT/ENGINE COUPLING
E020	ANCILLARY INSTRUMENT	Op. 5560C51 COMBINED ANALOGUE CONTROL PANEL - R+R OR REPLACE
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
I040	HANDBRAKE SWITCH	Op. 5550D18 HANDBRAKE ON WARNING LIGHT SWITCH - R+R
K020	LEFT BRAKE PAD WEAR SENSOR (SWITCH)	Op. 3310A60 FRONT BRAKE PADS - REPLACE
K021	RIGHT BRAKE PAD WEAR SENSOR (SWITCH)	Op. 3310A60 FRONT BRAKE PADS - REPLACE
K025	BRAKE FLUID LEVEL SENSOR (SWITCH)	Op. 3330C44 BRAKE FLUID MINIMUM W/L SWITCH - R + R
K052	ENGINE OIL LEVEL AND TEMPERATURE SENSOR
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M050	ABS CONTROL UNIT	Op. 3340A20 ABS ELECTRONIC CONTROL UNIT - R+R
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
N040	FUEL PUMP AND LEVEL GAUGE	Op. 1040A70 SUBMERGED PUMP ASSEMBLY COMPLETE WITH LEVEL GAUGE CONTROL - R + R
