Additional heater - component location
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Climate control system › Additional heater - component location
Wiring diagrams and electrical functionsAdditional heater - component location

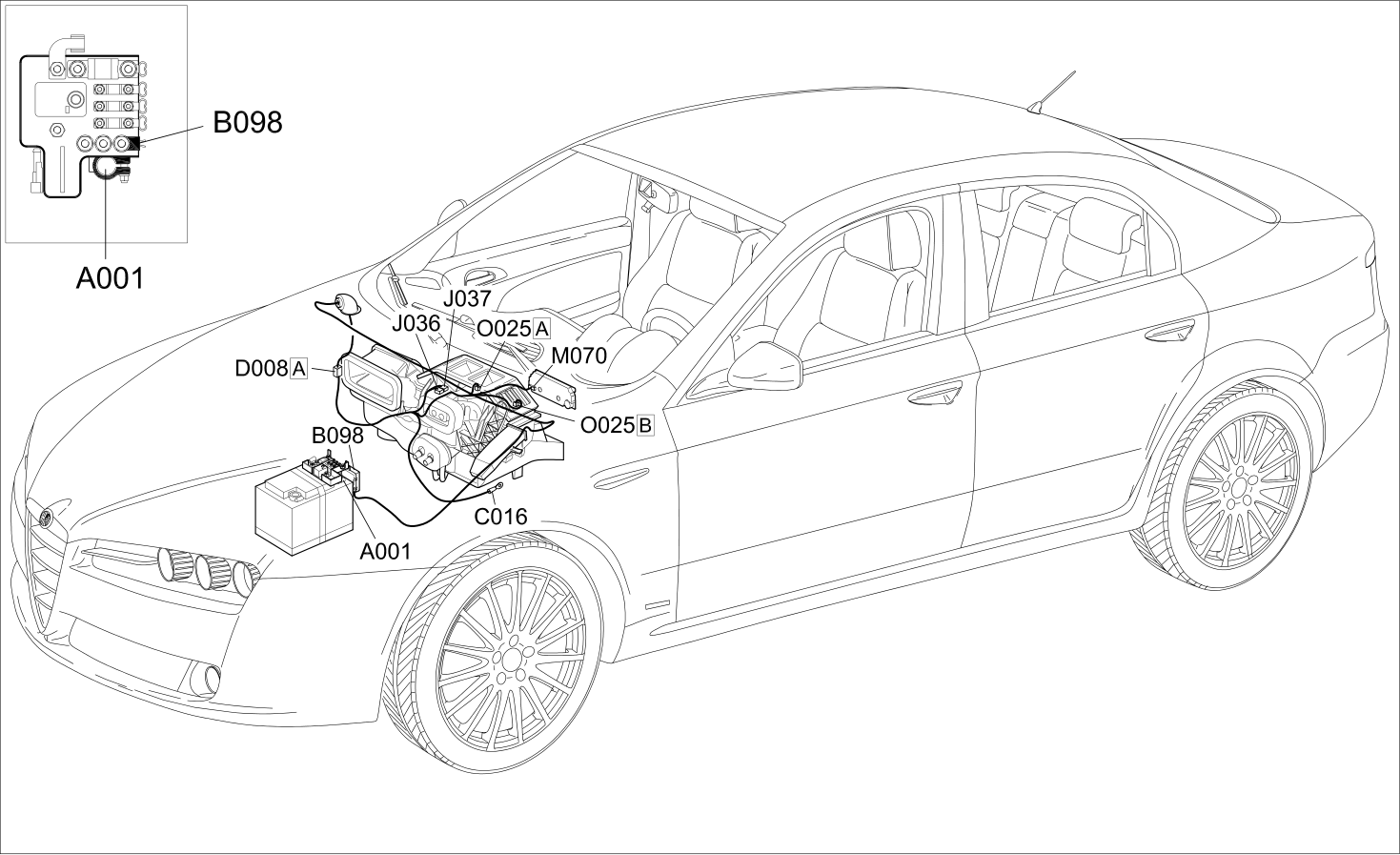

ADDITIONAL HEATER - COMPONENT LOCATION
COMPONENT LOCATION
| Component code | Description | Reference to the operation |
|---|---|---|
| A001 | BATTERY | Op. 5530B10 BATTERY - R+R |
| B098 | SUPPLEMENTARY FUSE BOX | |
| C016 | AIR CONDITIONING UNIT EARTH | |
| D008 | AIR CONDITIONING-HEATER FRONT COUPLING | |
| J36 | ADDITIONAL HEATER RELAY - 1 | |
| J37 | ADDITIONAL HEATER RELAY -2 | |
| M070 | CLIMATE CONTROL SYSTEM CONTROL UNIT | Op. 5040D18 AIR CONDITIONING CONTROL UNIT - R.R. |
| O025 | ADDITIONAL HEATER RESISTANCE |

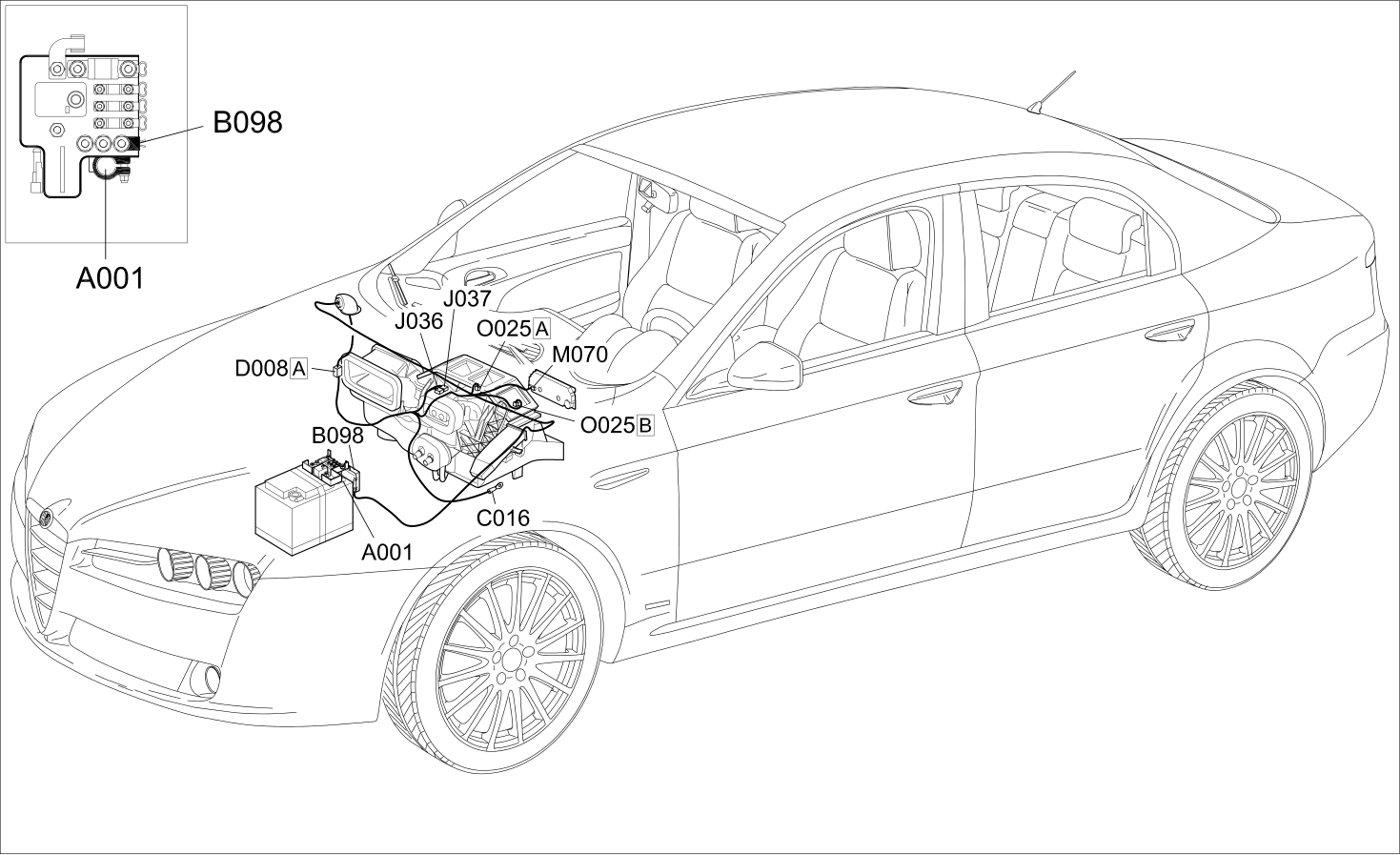

COMPONENT LOCATION
| Component code | Description | Reference to the operation |
|---|---|---|
| A001 | BATTERY | Op. 5530B10 BATTERY - R+R |
| B098 | SUPPLEMENTARY FUSE BOX | |
| C016 | AIR CONDITIONING UNIT EARTH | |
| D008 | AIR CONDITIONING-HEATER FRONT COUPLING | |
| J36 | ADDITIONAL HEATER RELAY - 1 | |
| J37 | ADDITIONAL HEATER RELAY -2 | |
| M070 | CLIMATE CONTROL SYSTEM CONTROL UNIT | Op. 5040D18 AIR CONDITIONING CONTROL UNIT - R.R. |
| O025 | ADDITIONAL HEATER RESISTANCE |
