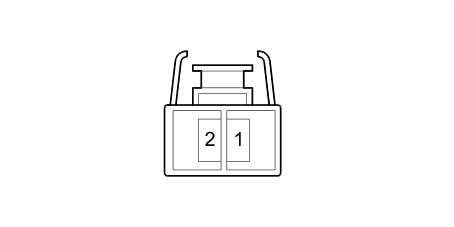

O025 ADDITIONAL HEATER RESISTANCE

O025A – Air conditioning

1.9 JTD 8V, 1.9 JTD 16V, 2.4 JTD 20V · Manual Air Conditioning

Wiring	Colour
See 65 AIR CONDITIONING	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	N		See C016 AIR CONDITIONING UNIT EARTH
2	4	S		See J036 ADDITIONAL HEATER RELAY - 1	30

1.9 JTD 8V, 1.9 JTD 16V, 2.4 JTD 20V · Automatic Air Conditioning

Wiring	Colour
See 65 AIR CONDITIONING	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	N		See C016 AIR CONDITIONING UNIT EARTH
2	4	R		See J036 ADDITIONAL HEATER RELAY - 1	30

O025B – Air conditioning

1.9 JTD 8V, 1.9 JTD 16V, 2.4 JTD 20V · Manual Air Conditioning

Wiring	Colour
See 65 AIR CONDITIONING	BLU

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	8	N		See C016 AIR CONDITIONING UNIT EARTH
2	8	S		See J037 ADDITIONAL HEATER RELAY -2	30

1.9 JTD 8V, 1.9 JTD 16V, 2.4 JTD 20V · Automatic Air Conditioning

Wiring	Colour
See 65 AIR CONDITIONING	BLU

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	8	N		See C016 AIR CONDITIONING UNIT EARTH
2	8	R		See J037 ADDITIONAL HEATER RELAY -2	30
