LEFT TAPPET COVER - R + R AND REPLACE GASKET

Operation 1016A30 · TAPPET COVERS

3.2 JTS

Removing

Op. 1016A10 SOUND-PROOFING COVER - R.R

Op. 5510C16 LEFT HAND CYLINDER HEAD IGNITION COIL - R+R

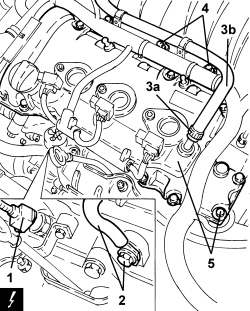

1. Disconnect the electrical connection for the air temperature sensor.

2. Undo the bolt fixing the earth lead to the left cylinder head.

3. Loosen the band (3a), disconnect the oil vapour pipe (3b) from the tappet cover and move it to one side.

4. Undo the bolts fixing the engine wiring retaining bracket.

- Release the engine wiring from the intermediate fastenings.

5. Undo the bolts and remove the left cylinder head tappet cover.

Refitting

- Place the left cylinder head tappet cover in position and tighten the bolts to the recommended torque.

- Connect the engine wiring to the intermediate fastenings.

- Tighten the bolts fixing the engine wiring retaining bracket.

- Place the oil vapour pipe in position and connect it to the tappet cover using the band.

- Tighten the bolt fixing the earth lead to the left cylinder head.

- Connect the electrical connection for the coolant temperature sensor.

Op. 5510C16 LEFT HAND CYLINDER HEAD IGNITION COIL - R+R

Op. 1016A10 SOUND-PROOFING COVER - R.R
