P056 heated windscreen
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Various consumers › P056 heated windscreen
Connectors and pin-outsP056 heated windscreen

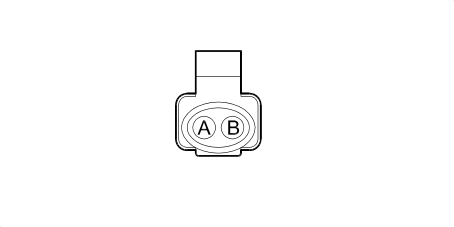

P056 HEATED WINDSCREEN
| Wiring | Colour |
|---|---|
| See 12 FRONT | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| A | 1.5 | VN | See B001C JUNCTION UNIT (FRONT) | 2 | |
| B | 1.5 | N | See C010 LEFT FRONT EARTH | 19 | |
| Wiring | Colour |
|---|---|
| See 12 FRONT | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| A | 1.5 | VN | See D006 FRONT/REAR COUPLING | 7 | |
| B | 1.5 | N | See C010 LEFT FRONT EARTH | 19 | |
