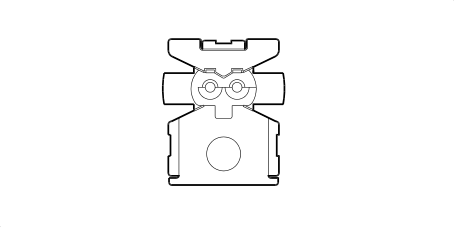

Q009 DRIVER'S AIR BAG

Q009I – Dashboard

Wiring	Colour
See 20 DASHBOARD	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
I				See D047 CLOCK SPRING COUPLING	12
I				See D047 CLOCK SPRING COUPLING	11

Q009II – Dashboard

Wiring	Colour
See 20 DASHBOARD	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
II				See D047 CLOCK SPRING COUPLING	10
II				See D047 CLOCK SPRING COUPLING	9
