D013 front/bumper coupling

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Intermediate couplings › D013 front/bumper coupling

Connectors and pin-outsD013 front/bumper coupling

D013 FRONT/BUMPER COUPLING

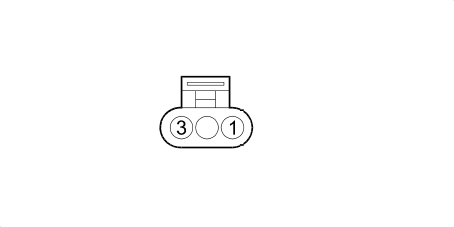

D013A – Front

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	N		See C010 LEFT FRONT EARTH	4
2	1	MN		See B001A JUNCTION UNIT (FRONT)	4
3	1	M		See B001A JUNCTION UNIT (FRONT)	5

D013A – Front bumper

Wiring	Colour
See 14 FRONT BUMPER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	N	X	See F015 LEFT FOG LAMP	2
				See F016 RIGHT FOG LAMP	2
2	1	MN		See F016 RIGHT FOG LAMP	1
3	1	M		See F015 LEFT FOG LAMP	1

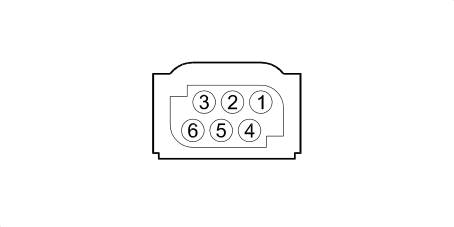

D013B – Front

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NZ		See M084B PARKING SENSOR CONTROL UNIT (FRONT)	1
2		BL		See M084B PARKING SENSOR CONTROL UNIT (FRONT)	2
3		AB		See M084B PARKING SENSOR CONTROL UNIT (FRONT)	5
4		RV		See M084B PARKING SENSOR CONTROL UNIT (FRONT)	6
5		SV		See M084B PARKING SENSOR CONTROL UNIT (FRONT)	7
6		HR		See M084B PARKING SENSOR CONTROL UNIT (FRONT)	8

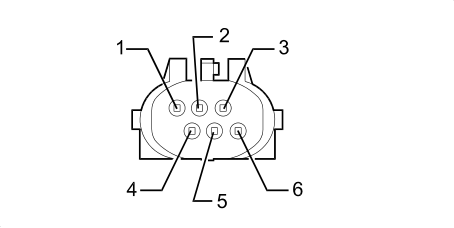

D013B – Front bumper

Wiring	Colour
See 14 FRONT BUMPER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NZ	X	See K097A PARKING SENSORS (FRONT BUMPER)	3
				See K097B PARKING SENSORS (FRONT BUMPER)	3
				See K097C PARKING SENSORS (FRONT BUMPER)	3
				See K097D PARKING SENSORS (FRONT BUMPER)	3
2		BL	X	See K097A PARKING SENSORS (FRONT BUMPER)	1
				See K097B PARKING SENSORS (FRONT BUMPER)	1
				See K097C PARKING SENSORS (FRONT BUMPER)	1
				See K097D PARKING SENSORS (FRONT BUMPER)	1
3		AB		See K097A PARKING SENSORS (FRONT BUMPER)	2
4		RV		See K097B PARKING SENSORS (FRONT BUMPER)	2
5		SV		See K097C PARKING SENSORS (FRONT BUMPER)	2
6		HR		See K097D PARKING SENSORS (FRONT BUMPER)	2
