D79 Transmission sensor junction

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Intermediate junctions › D79 Transmission sensor junction

Connectors and pin-outsD79 Transmission sensor junction

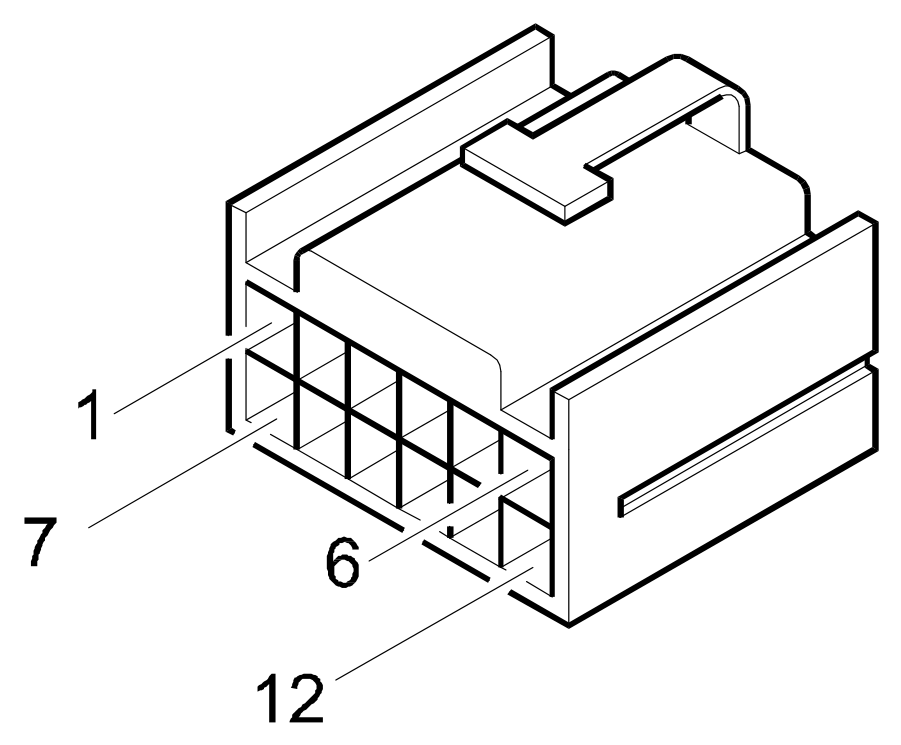

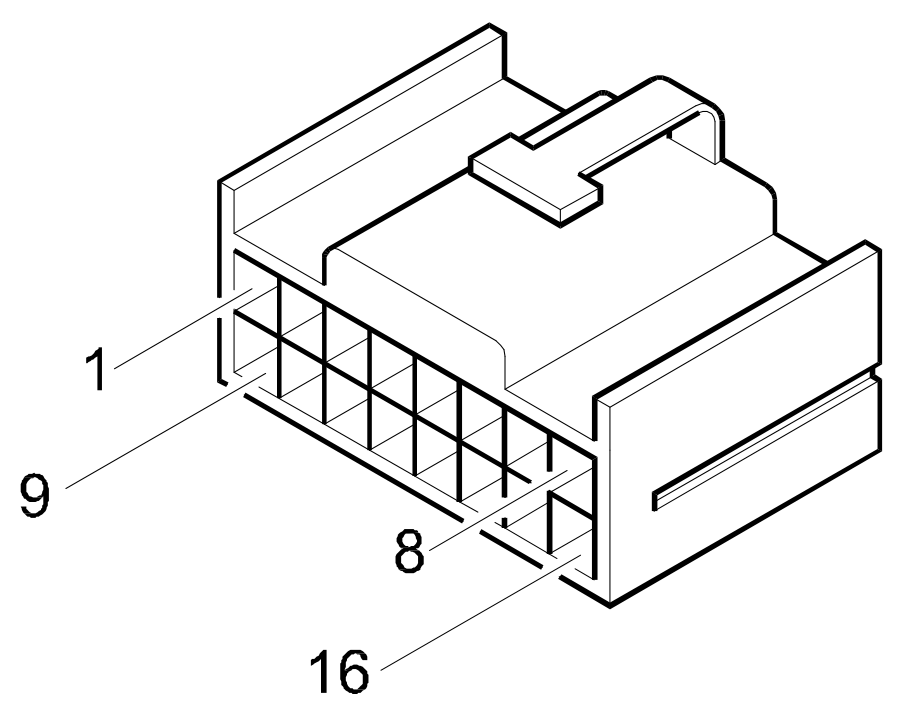

D79 Transmission sensor junction

Connector D79 – automatic transmission harness (black) – Selespeed

Pin	mm²	Colour		To
1		ZN	violet/black	L51 pin 2 L52 pin 2 L53 pin 2 L54 pin 2 L56 pin 2
2		MN	brown/black	L53 pin 1
5		B	white	K96 pin A K69 pin B K68 pin A
6		LR	blue/red	K96 pin C
7		V	green	K95 pin C
8		B	white	K95 pin A
10		BV	white/green	L51 pin 1
11		G	yellow	L56 pin 1
12		HN	grey/black	L54 pin 1
14		MB	brown/white	K69 pin C
15		BN	white/black	K68 pin C
16		R	red	K96 pin B K69 pin A K68 pin B
17		VN	green/black	K95 pin B
18		CB	orange/white	K77 pin 1
19		CN	orange/black	K78 pin 2
20		A	light blue	L52 pin 1

Connector D79 – automatic transmission harness (black) – Q-System

Pin	mm²	Colour		To
1		LN	blue/black	K78 pin 2
2		NL	black/blue	K78 pin 1
3		N	black	@_P@_*
4		B	white	K77 pin 2
5		R	red	K77 pin 1

Connector D79 – abs harness (black) – Q-System

Pin	mm²	Colour		To
1		LN	blue/black	M55B pin 3
2		NL	black/blue	M55B pin 11
3		N	black	M55B pin 2
4		B	white	M55B pin 4
5		R	red	M55B pin 12

Wiring diagrams

• E7050
