Alfa Romeo 147 Factory Service Manual (2000-2002)16 · Connectors and pin-outs
16 · General

I50 Inertial switch

Make
Alfa Romeo
Model
147 Factory Service Manual
Year
2000–2002
Section
Switches › I50 Inertial switch
Connectors and pin-outsI50 Inertial switch

I50 Inertial switch

Connector I50 – rear harness (black)

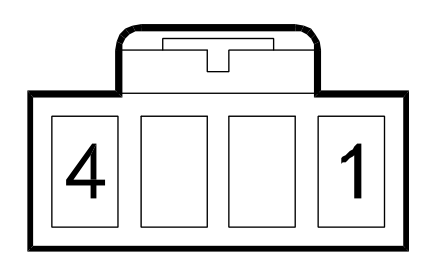

Connector I50, Inertial switch
Pinmm²ColourTo
12.0NVblack/greenC38 pin 9
2HNgrey/blackD20 pin 1
32.0NZblack/violetN40 pin 3
